BUG REPORT: PWS() driving a voltage controlled switch throws error.

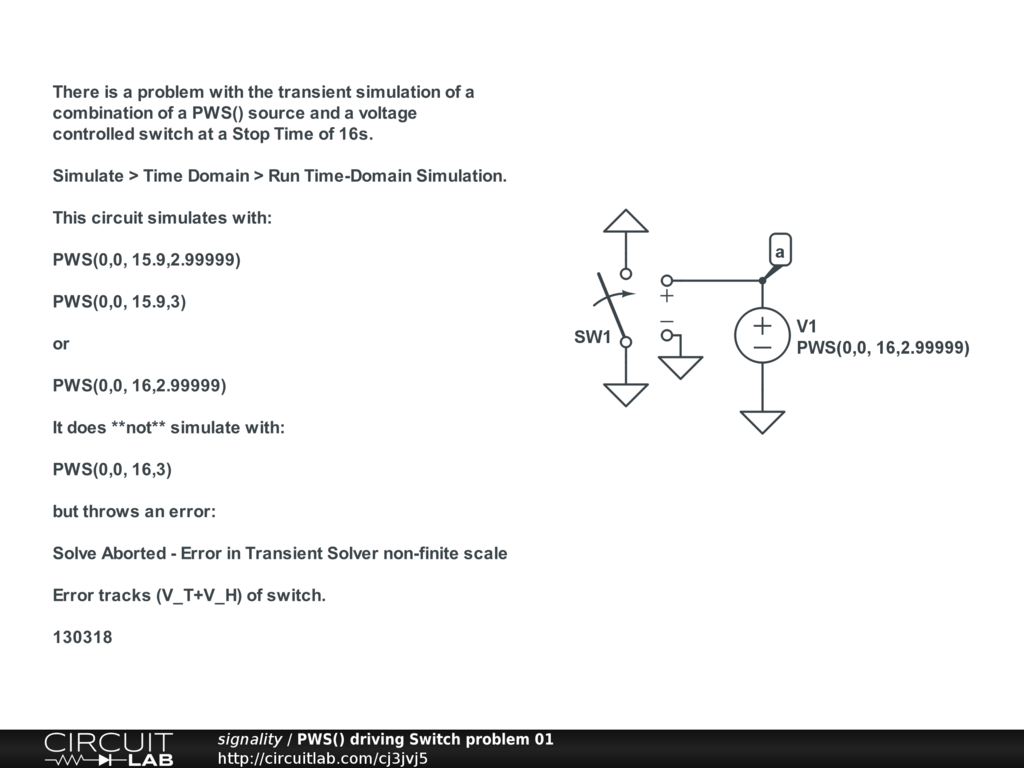

It's all explained in here:

Issue picked up in this thread:

https://www.circuitlab.com/forums/support/topic/d44sucs5/pws-formula-creates-error/

in my case it's on 32 bit XP Pro SP3 with Chrome Version 25.0.1364.172 m or Firefox 19.0.2.

by signality
March 18, 2013
