use 6 thyriseor as SSR in 3PHASE(But dont WORK it)

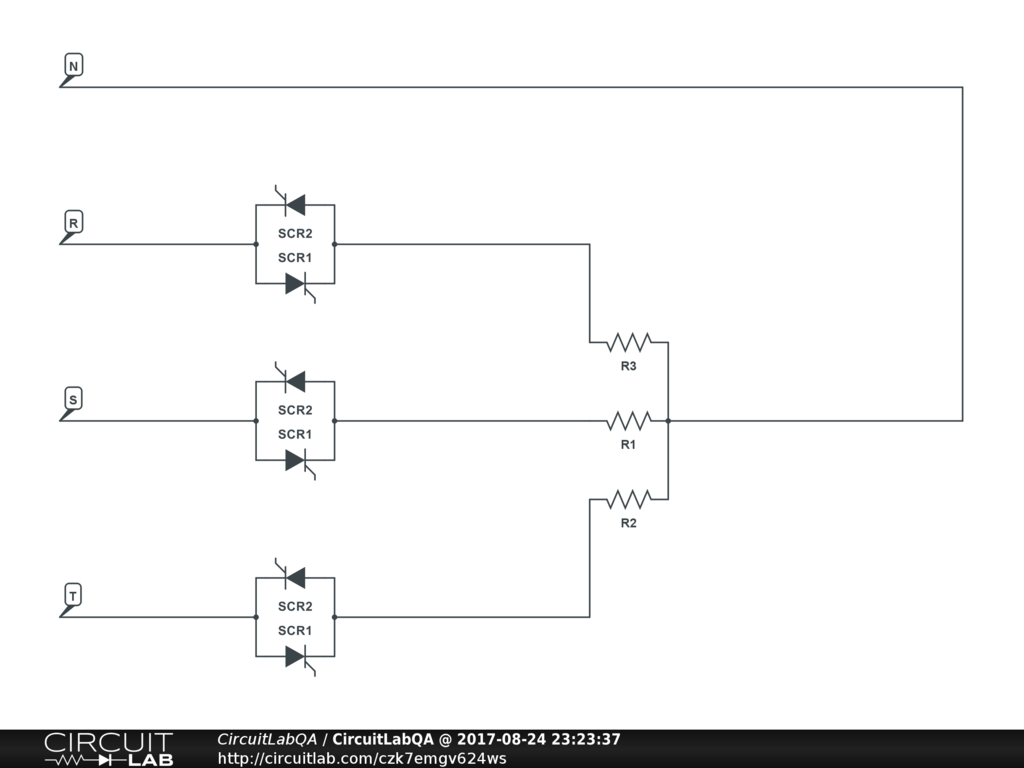

Hi dear friends i use 6 thyristor as switch in 3 phase like below:

i trigger each thyristor on zero time in its phase . (i use zero crosing). it work when neutral is connect on star center .but it don't work when the neutral wire is disconnected .

what is the problem ?

i think for example in first time when thyristor's R phase is triggered because other thyristors are off it can't turn on (there is no way for flow the current in load )

but when the neutral is connected there is a way to flow current in load.

now please help me to solve the problem . how must i trigger thyristors that work circuit with out neutral wire? thanks a lot . best regards.
