Free energy or a bug ? SOLVED

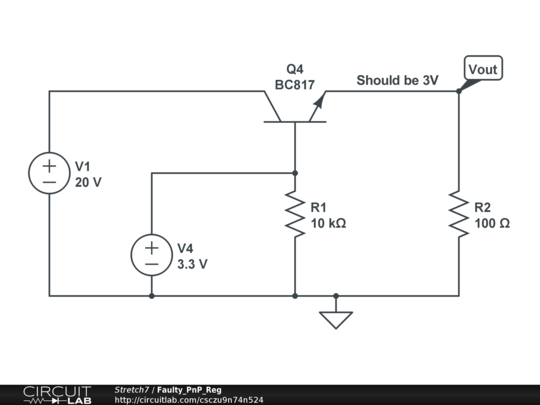

hi, can you try this simple 3 part circuit ?

I am not sure how this is generating more power than the sun ? but its my new invention... !

note the 1.3E19 V output..... I think that's 13000000000000000000V... a little more than I need.

https://www.circuitlab.com/circuit/sczu9n74n524/screenshot/540x405/

https://www.circuitlab.com/circuit/sczu9n74n524/faulty_pnp_reg/

by Stretch7
October 11, 2018

FireFox 62.0.3 (64-bit) Win10.

by Stretch7
October 12, 2018

Found it...

Rookie mistake... No Ground pin.

works now :)

by Stretch7
October 12, 2018
