Created by
Created March 20, 2012
Last modified March 22, 2012
Tags motor   power   servo

Summary

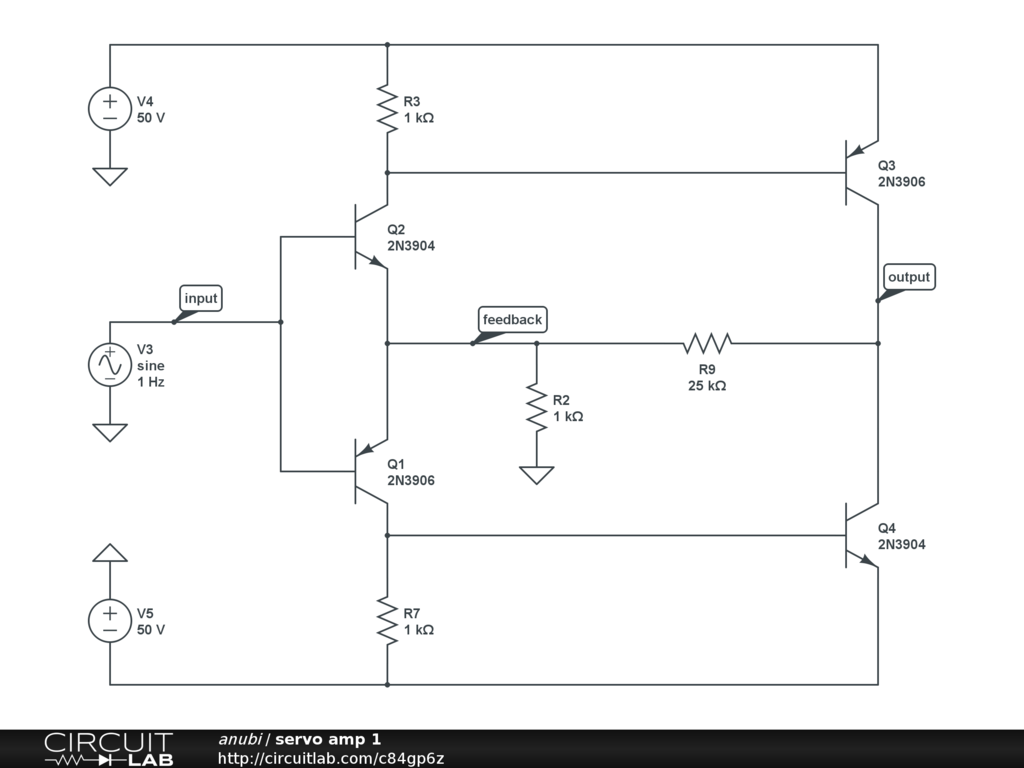

Drives high power loads with small control voltage. Note "dead zone" near zero. This is to eliminate "shoot thru" and guarantee both transistors can not on simultaneously. Not recommended for audio amp . Use appropriate power transistors for Q3, Q4.


Description

Not provided.
