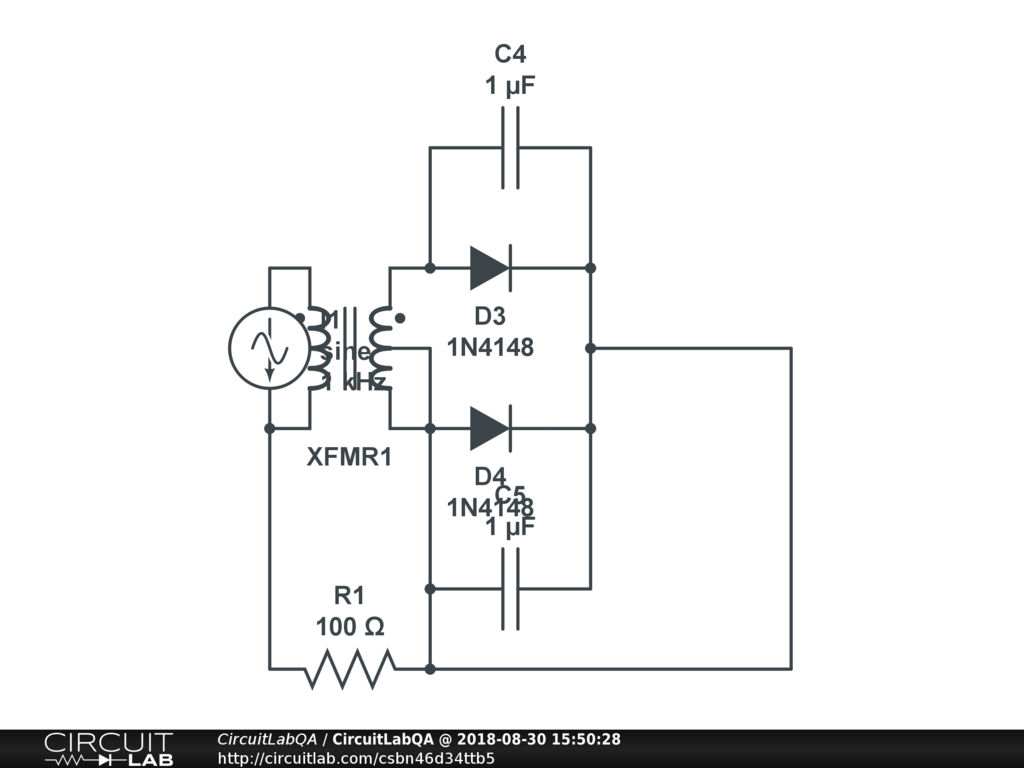

this is a diagram for one transformr that AC-DC but there is a resistor that is really buging me... |
by boy2018
August 30, 2018 |
The circuit as depicted contains quite a few obvious errors. R1 links AC ground to DC ground. It is greater than zero ohms to prevent a hum loop and less than infinity to prevent static building up. Its value could be anything between 10 ohms and 1k ohm. |
+1 vote by mikerogerswsm August 30, 2018 |
