I'm trying to make a circuit where I can switch the direction of a DC motor but I'm having a bit of trouble figuring out what I'm supposed to be doing here. |
February 15, 2026 |
|
Look for "H Bridge". |
February 18, 2026 |
|

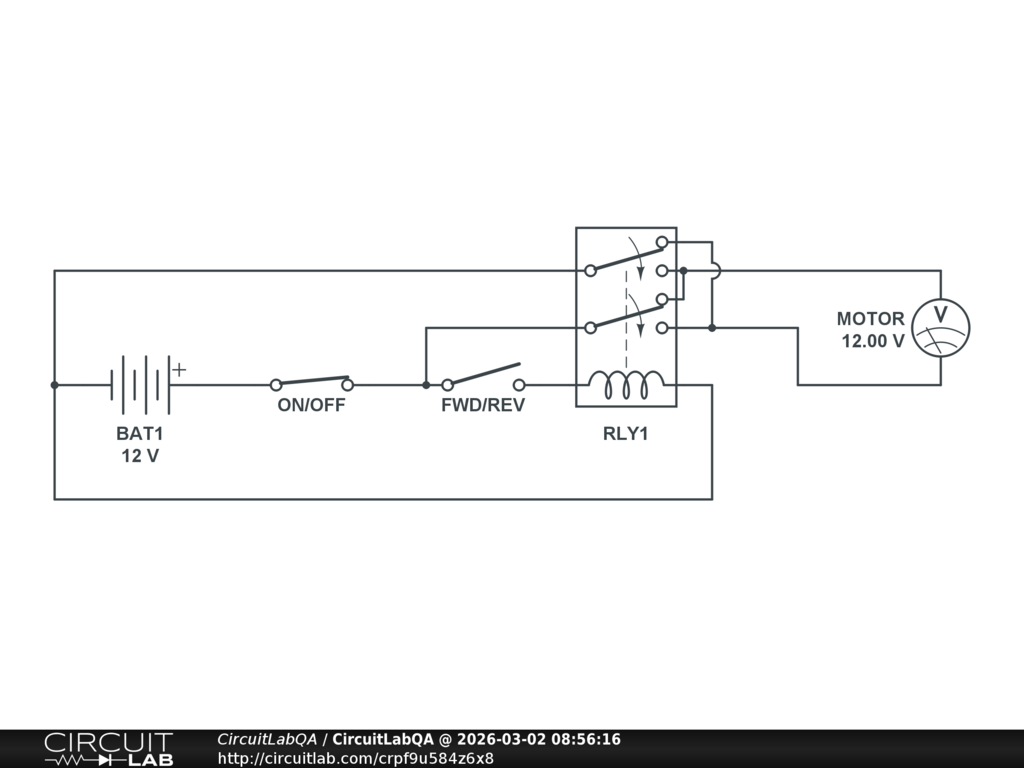

This might help https://www.circuitlab.com/circuit/nru9t789658s/convert-2-power-wire-switch-to-reverse-polarity-motor/ |
by dennissmith20 February 18, 2026 |
|
You could use a DPDT switch rather than a relay but this is probably the simplest solution for reversing.
|
by atrautman March 02, 2026 |
