In circuit designs, one often sees a line coming out of a regular circuit designated V 10 volts for example. My question is, how does one convert this 10 V input into the simulation circuit? |
by gordonwwalker
May 19, 2019 |

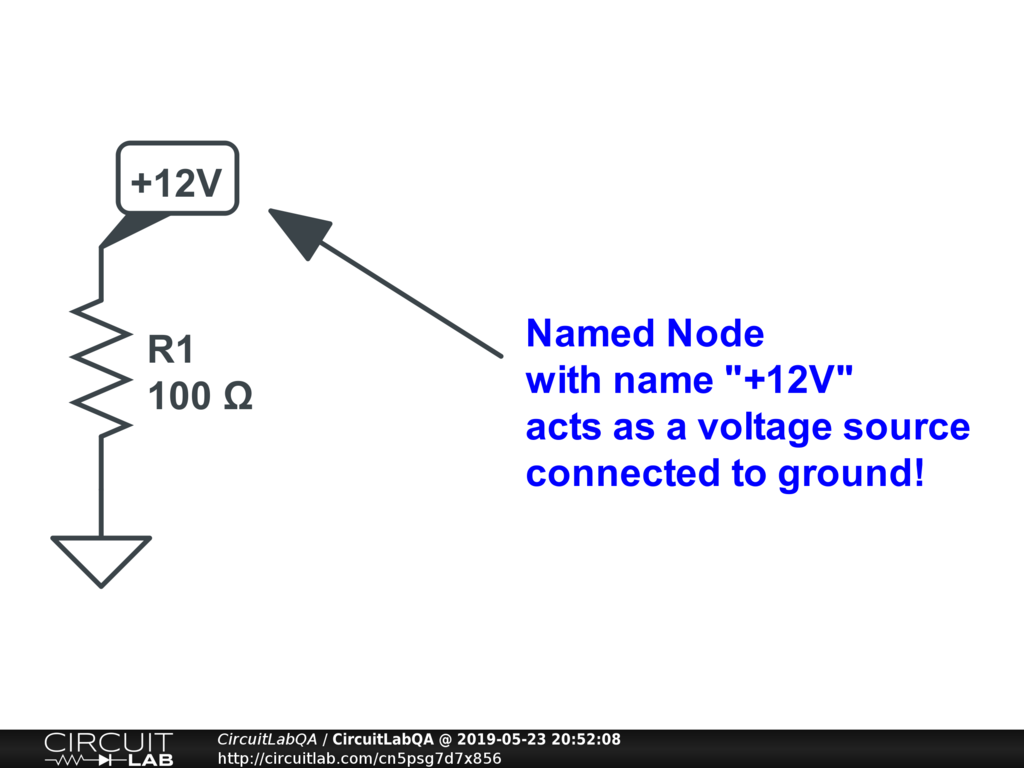

You can use a Named Node and name it "+10V" (without the quotes) like this: This is equivalent to having a 10V voltage source with the negative terminal grounded. |
ACCEPTED
+1 vote by mrobbins May 23, 2019 |
