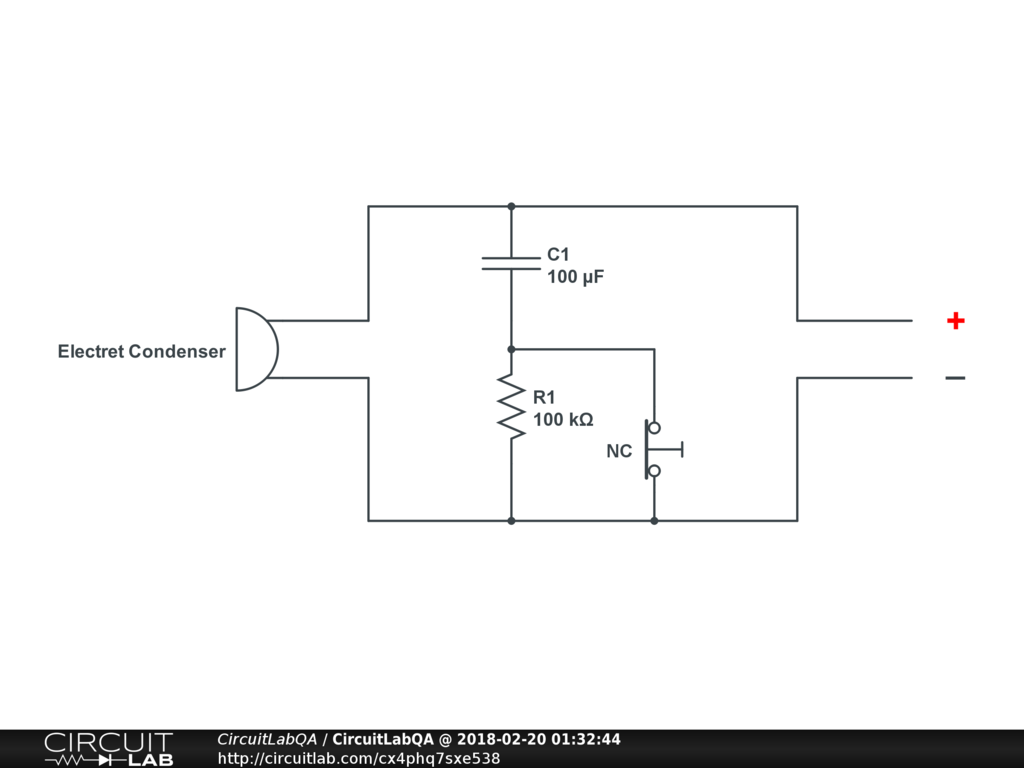

Im looking for a version of this circuit (which eliminates the 'pop' caused by DC voltage powering an electret condenser) that works with a NO switch. The switch in the circuit below is NC.
Is this possible?
Im using a generic walkie talkie covert PTT mic, which I will terminate appropriately into a lectrosonics SMDB transmitter. (circuit diagram on page 11); http://www.lectrosonics.com/europe/phocadownload/SMB_E01_Series_Man.pdf
Thank you in advance!! Rob
February 20, 2018
Why not use a DPDT switch? One Pole can be used to provide the NO power switch and the other to provide the NC mute function.
February 28, 2018
No answers yet. Contribute your answer below!
