AM envelop detector

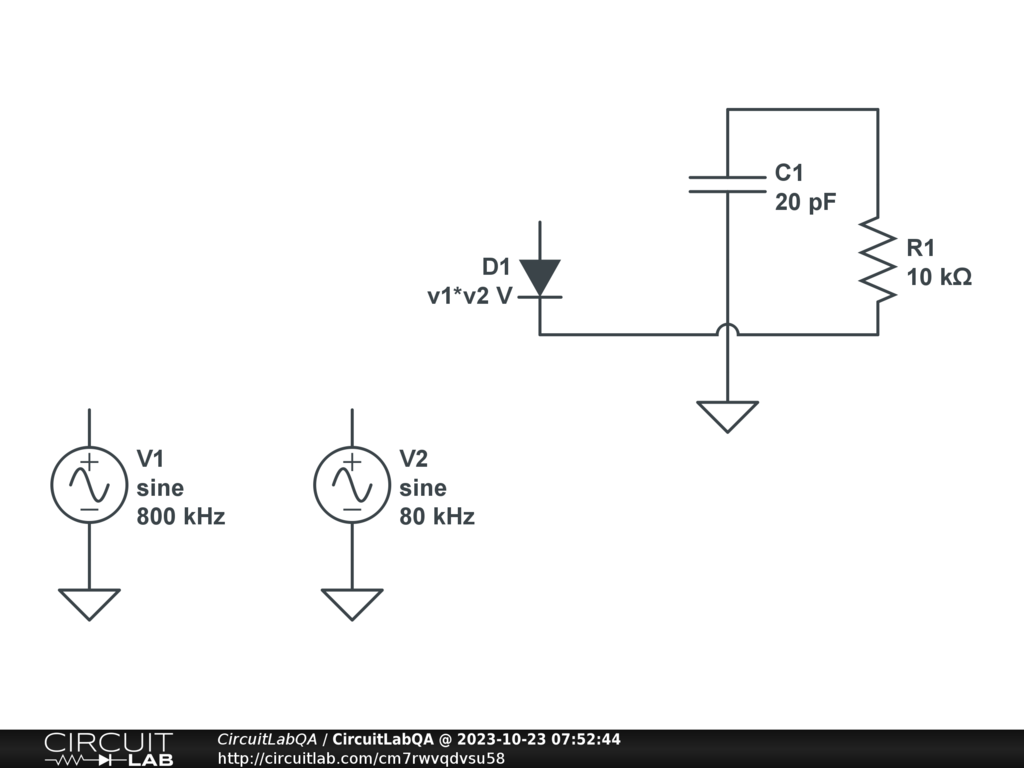

I have this circuit on ltspice and it's well designed (I put the multiplier for v1 and v2 but here I didn't find it) can someone tell me please why the demolated signal is not correct(the modulated one is working well)

by HalimaGhannoum
October 23, 2023

No Answers

No answers yet. Contribute your answer below!
