adding voltages in transformer circuit

I'd like to feed 120VAC into 5 microwave transformers for my SG tesla coil project. I watched a video https://www.youtube.com/watch?v=8xiNoRWvxyM&t=128s to help me with this configuration. Is it okay if someone can give me advice on wiring. Because some of my transformers are a bit different. My email is kbliegey@icloud.com for more info then just a forum. I have the wattage, and current in my notes by the way.

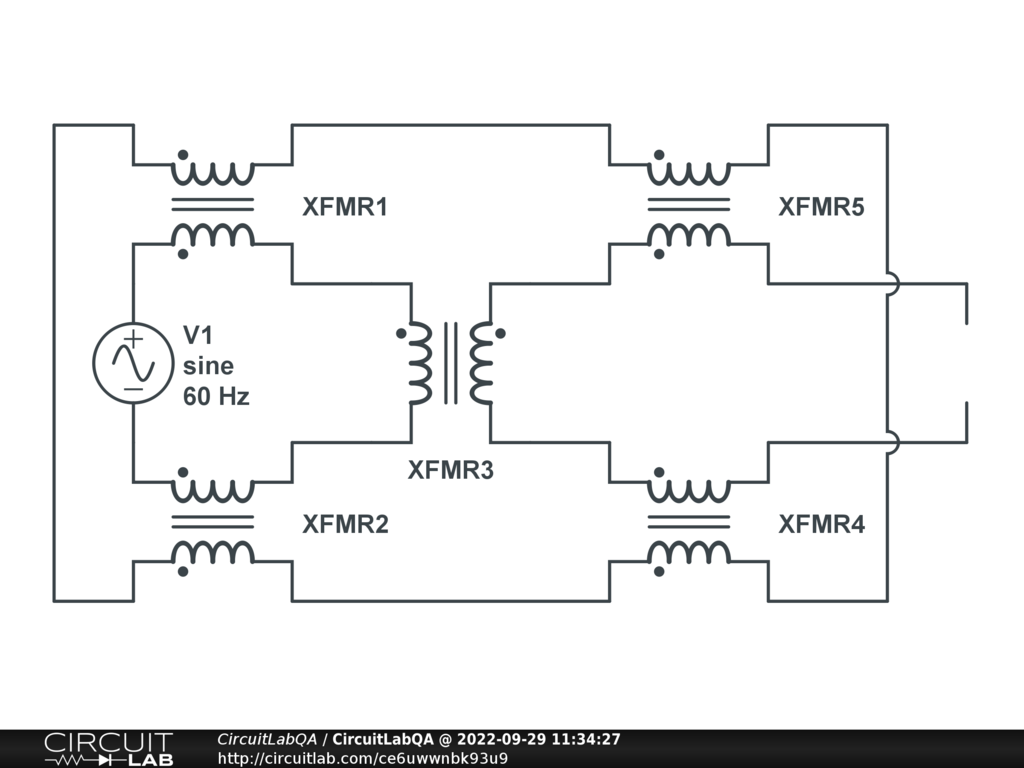

It would be something like that but not sure about induction or resistance of MOT's and will have to do more detective work

by brenlieg0
September 29, 2022

No Answers

No answers yet. Contribute your answer below!
