Relay turn-on voltage SOLVED

Can someone tell me what the turn-on voltage is for a CircuitLab SPDT relay for simulation purposes? If it's customizable, can you also let me know how?


by icass22
December 30, 2020

I.e. what is its rating

by icass22
December 30, 2020

1 Answer

Answer by mrobbins

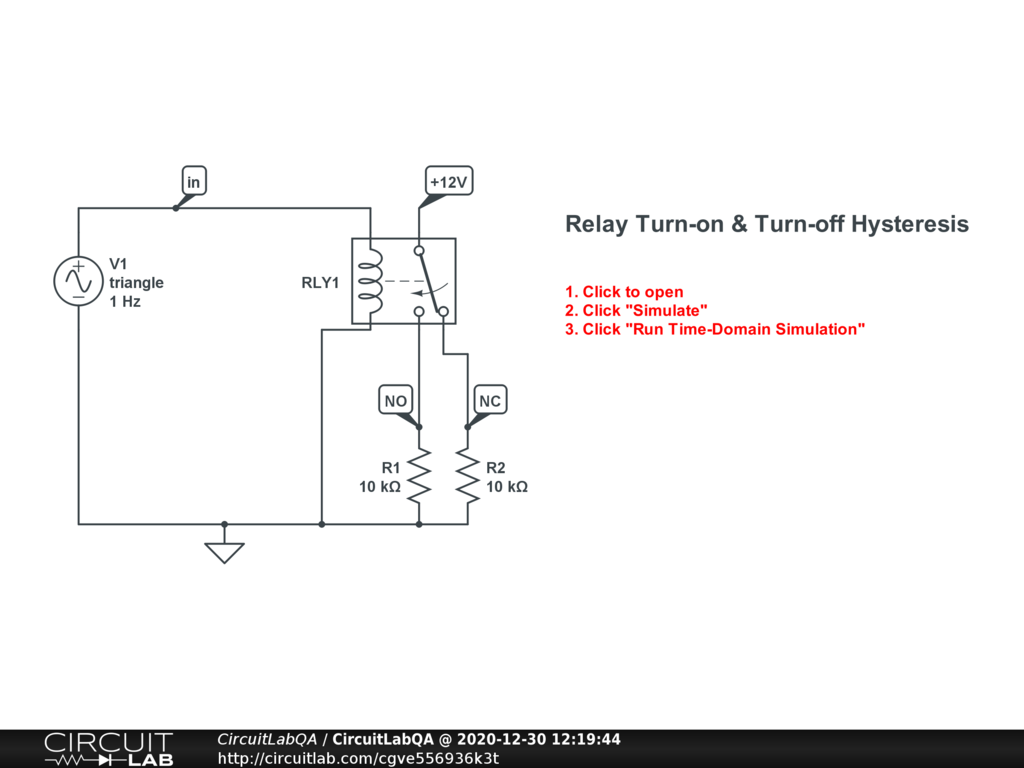

It will turn on with > 3 V and turn off with < 2 V. See this example:

ACCEPTED +2 votes
by mrobbins
December 30, 2020


by icass22
December 30, 2020
