Yet another "Unable to get solution" for DC solver`

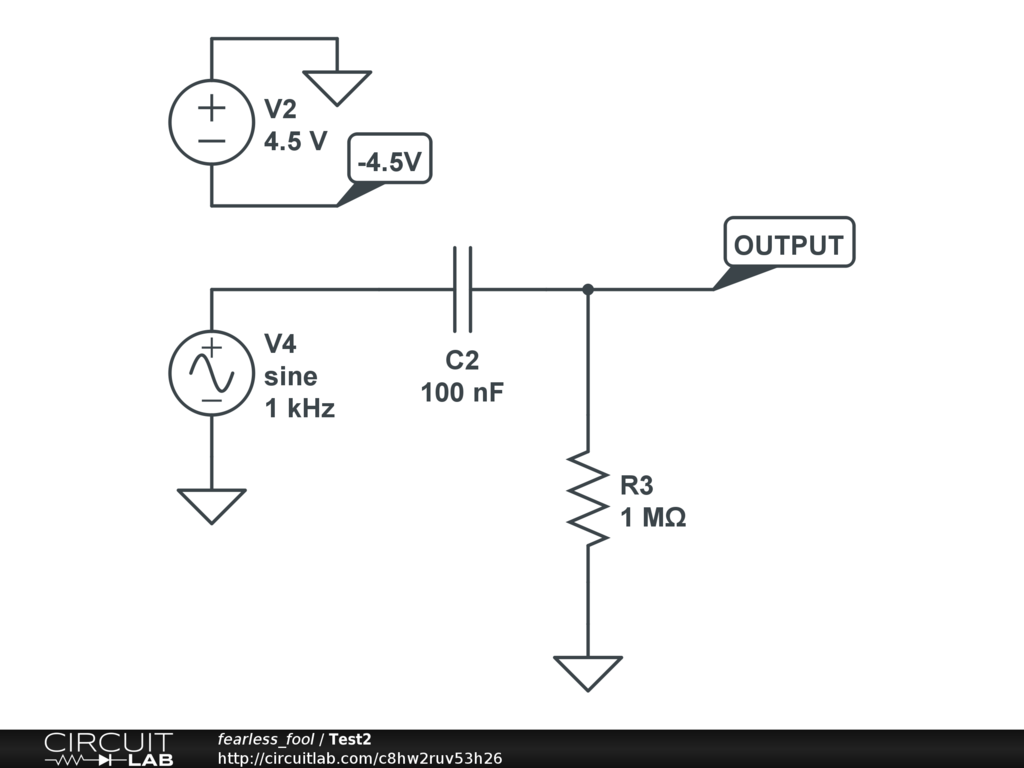

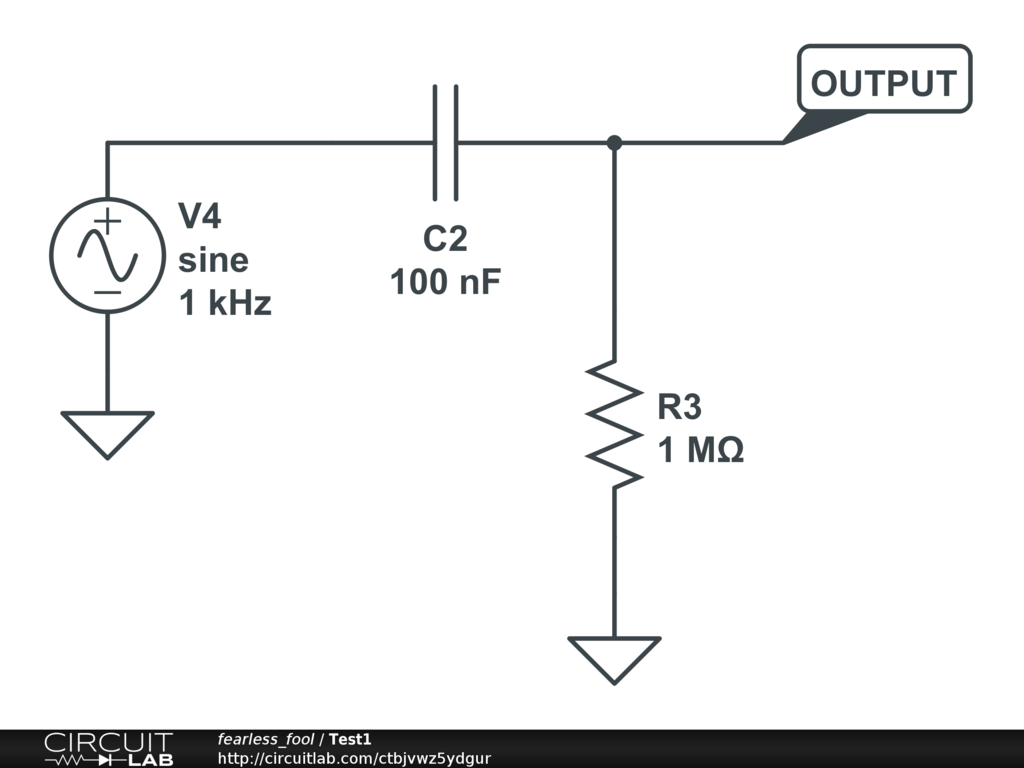

Running the DC solver on this works: Running the DC solver on this fails with "Unable to get solution" I need the -4.5V rail for additional components I'm about to add. What am I missing?

by fearless_fool
22 hours, 3 minutes ago
