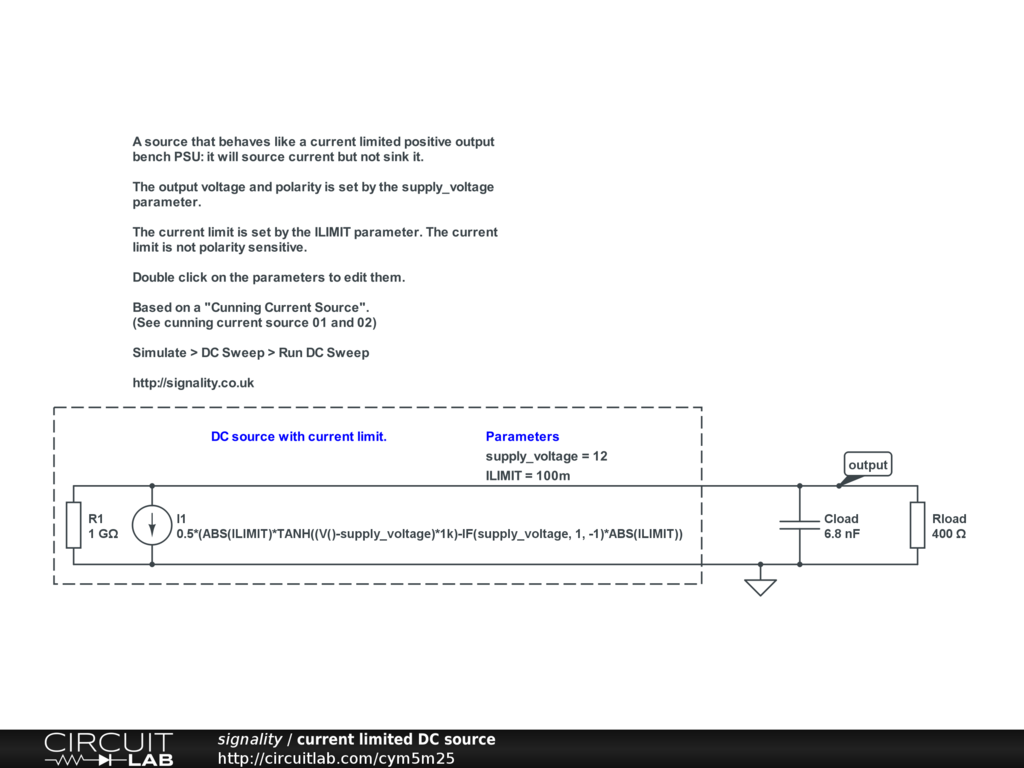

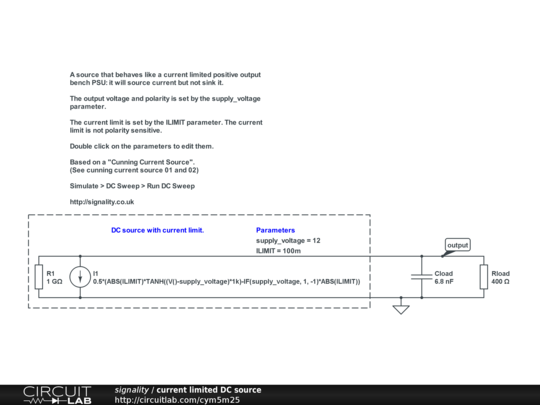

A DC source with a current limit.
A source that behaves like a current limited positive output bench PSU: it will source current but not sink it.
The output voltage and polarity is set by the supply_voltage parameter.
The current limit is set by the ILIMIT parameter. The current limit is not polarity sensitive.
Double click on the parameters to edit them.
Based on a "Cunning Current Source".
See cunning current source 01 and 02:
https://www.circuitlab.com/circuit/ns9k5b/cunning-current-source-01/
https://www.circuitlab.com/circuit/tuf78c/cunning-current-source-02/
Simulate > DC Sweep > Run DC Sweep
