Continuing from cunning current source 01
Continuing from cunning current source 01:
https://www.circuitlab.com/circuit/ns9k5b/cunning-current-source-01/

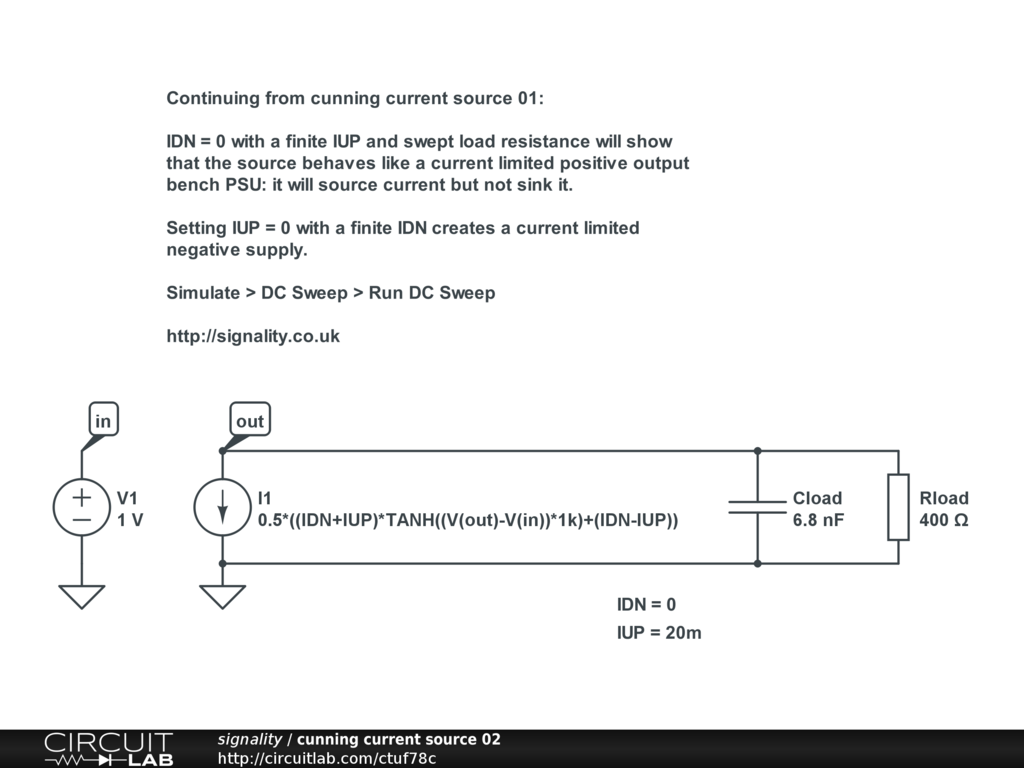

IDN = 0 with a finite IUP and swept load resistance will show that the source behaves like a current limited positive output bench PSU: it will source current but not sink it.
Setting IUP = 0 with a finite IDN creates a current limited negative supply.
Simulate > DC Sweep > Run DC Sweep
