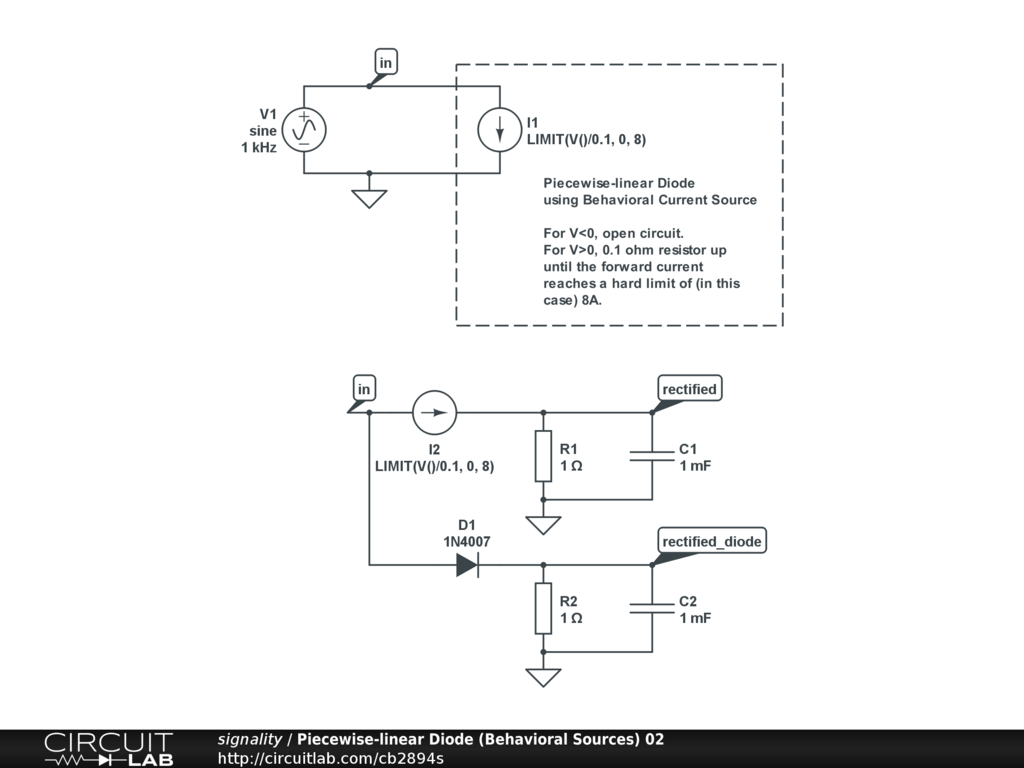

Same as @mrobbins Piecewise-linear Diode (Behavioral Sources) but with a hard forward current limit


Beware that these Piecewise-linear Diode (Behavioral Sources) models may cause convergence problems because they have discontinuous derivatives (which simulators don't generally like). Placing a large resistance and a small capacitance in parallel across them may help.
