Created by
Created January 21, 2022
Last modified January 21, 2022
Tags aoe   emitter-follower   low-pass   passive-filter   voltage-regulator   zener-diode


Not provided.


Explanation of circuit:

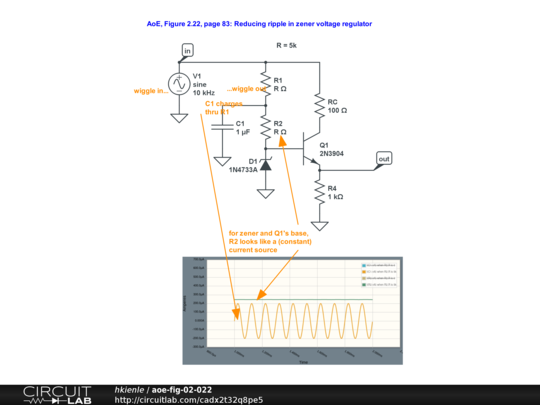

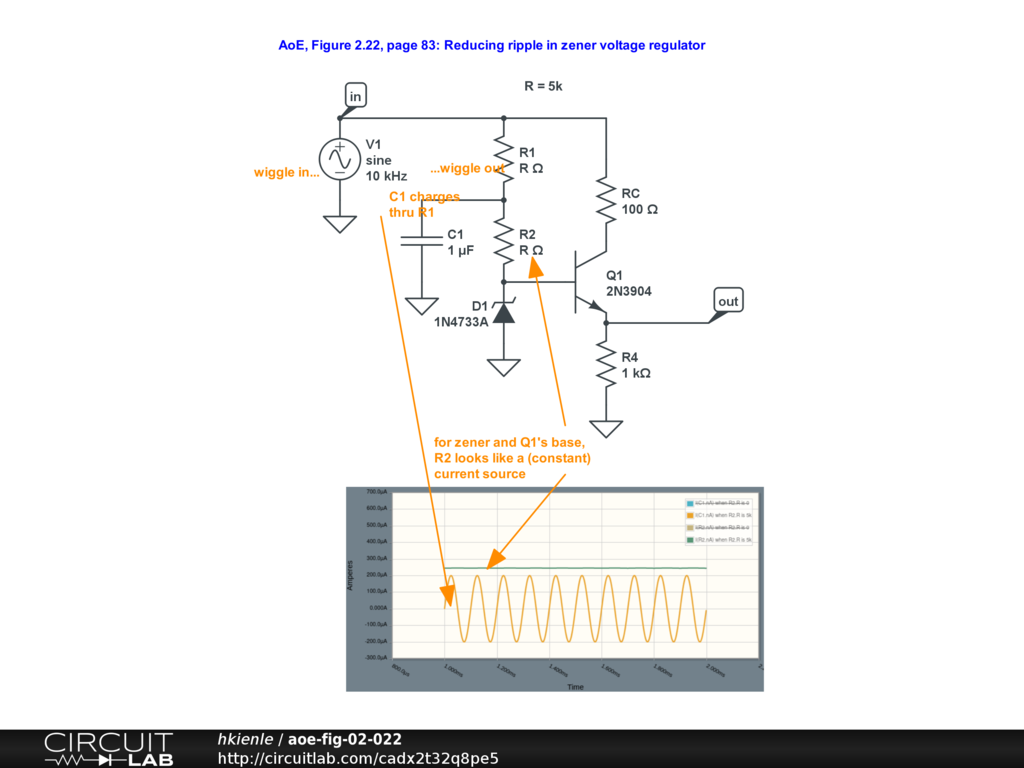

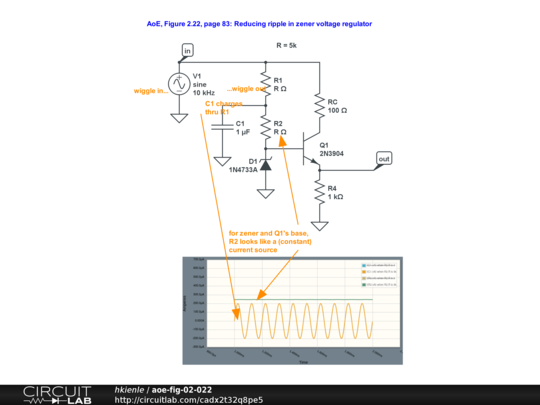

Small-signal view: R2 acts as a (constant) current source (green line), while C1 is charging thru R1 (orange line) Without R2, the current is no longer constant (upper line)
