Charge conservation 01

Created by	signality
Created	May 16, 2012
Last modified	May 17, 2012
Tags	behavioural-capacitor charge charge-conservation

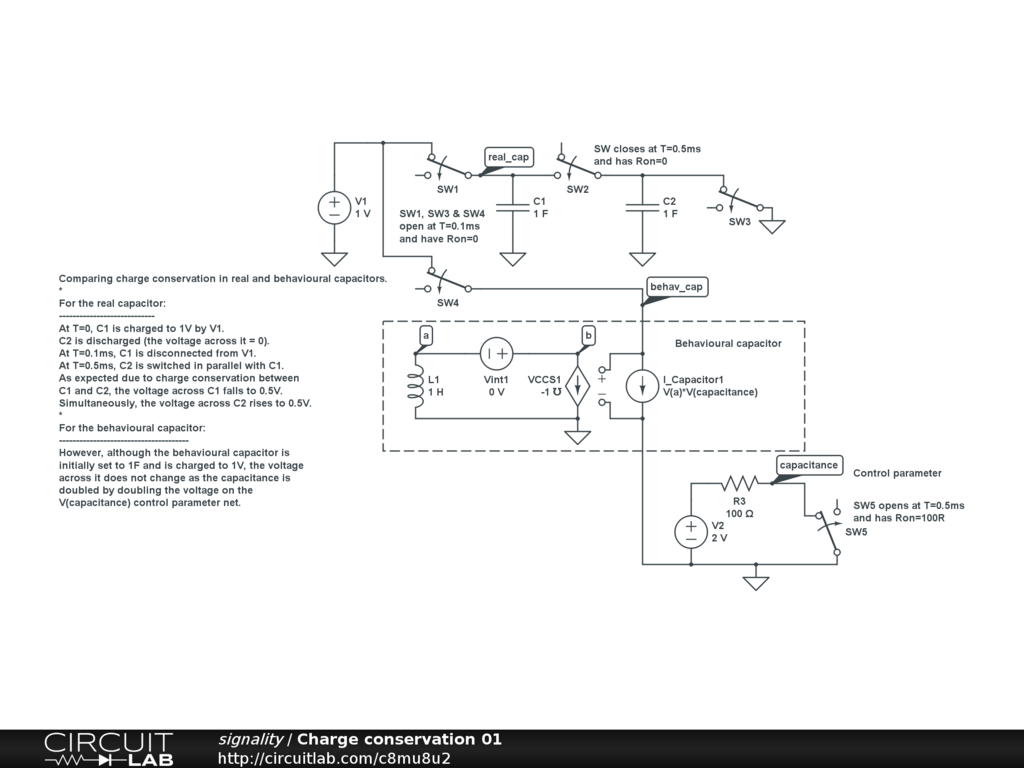

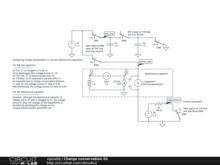

Comparing charge conservation in real and behavioural capacitors.

Unlike real capacitors, in the particular type of behavioural capacitor illustrated, charge is not conserved.
