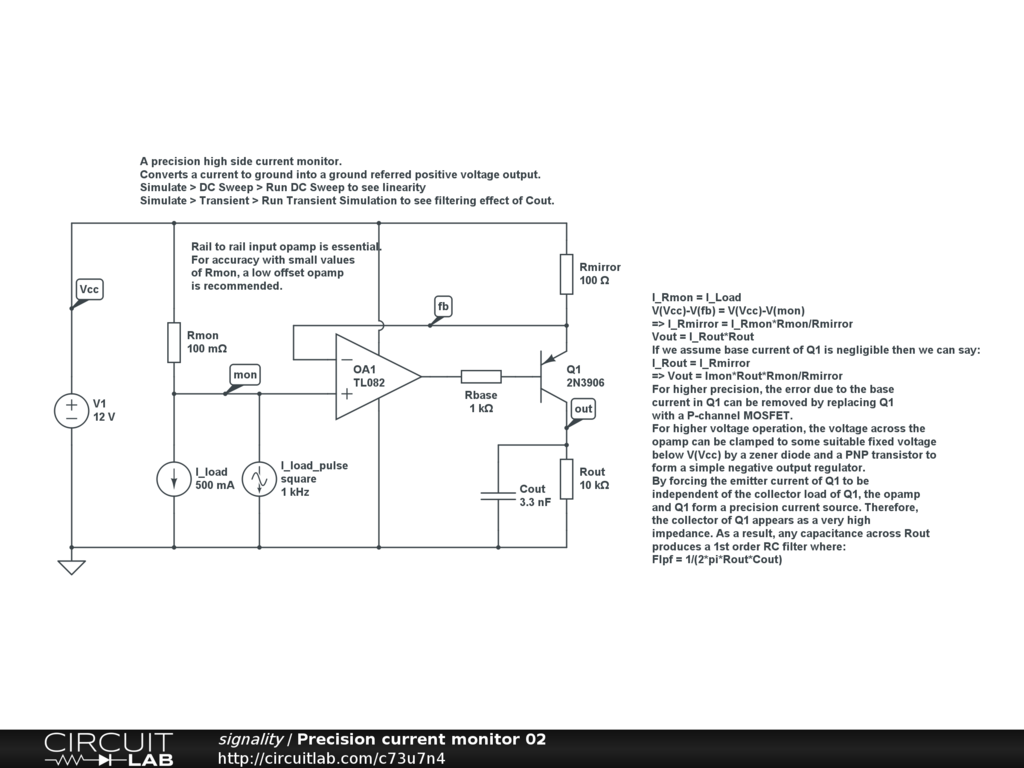

A precision high side current monitor.

Converts a current to ground into a ground referred positive voltage output. Showing DC linearity and transient response.


Same as Precision Current Monitor but now adds a transient response with a pulsed load current to illustrate the 1st order filtering effect of an output capcitance, Cout.
