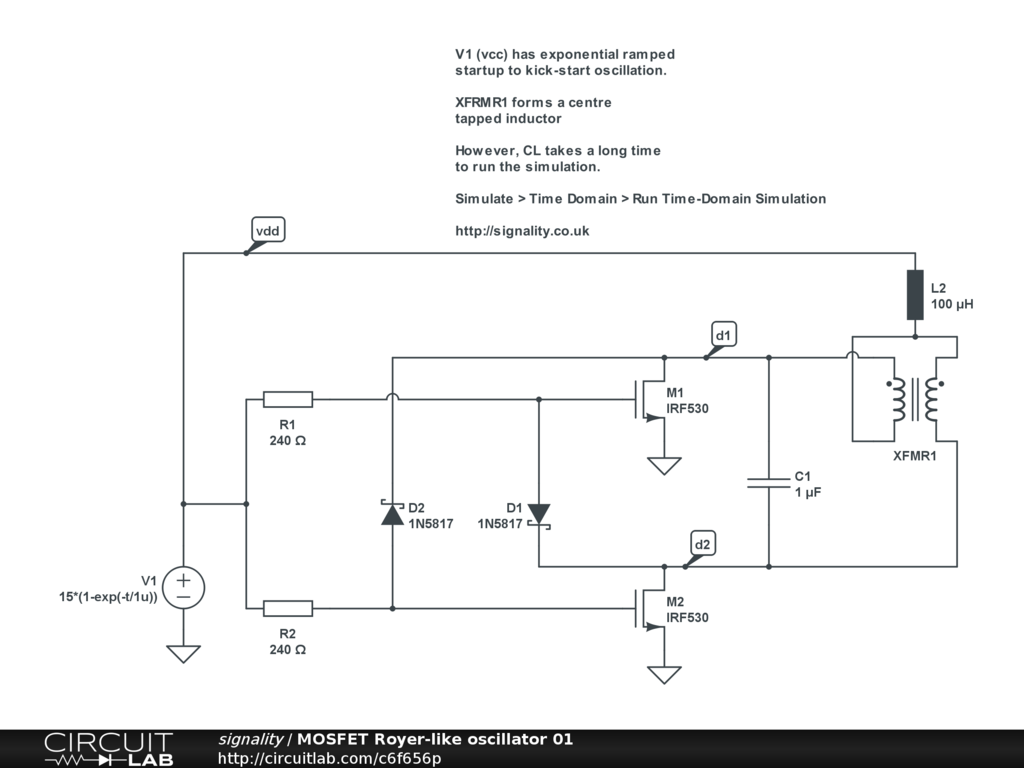

V1 (vcc) has exponential ramped
startup to kick-start oscillation.
XFRMR1 forms a centre
tapped inductor
However, CL takes a long time
to run the simulation.
Simulate > Time Domain > Run Time-Domain Simulation
V1 (vcc) has exponential ramped startup to kick-start oscillation.
XFRMR1 forms a centre tapped inductor
However, CL takes a long time to run the simulation.
Simulate > Time Domain > Run Time-Domain Simulation
