Sweeping a switch parameter 01

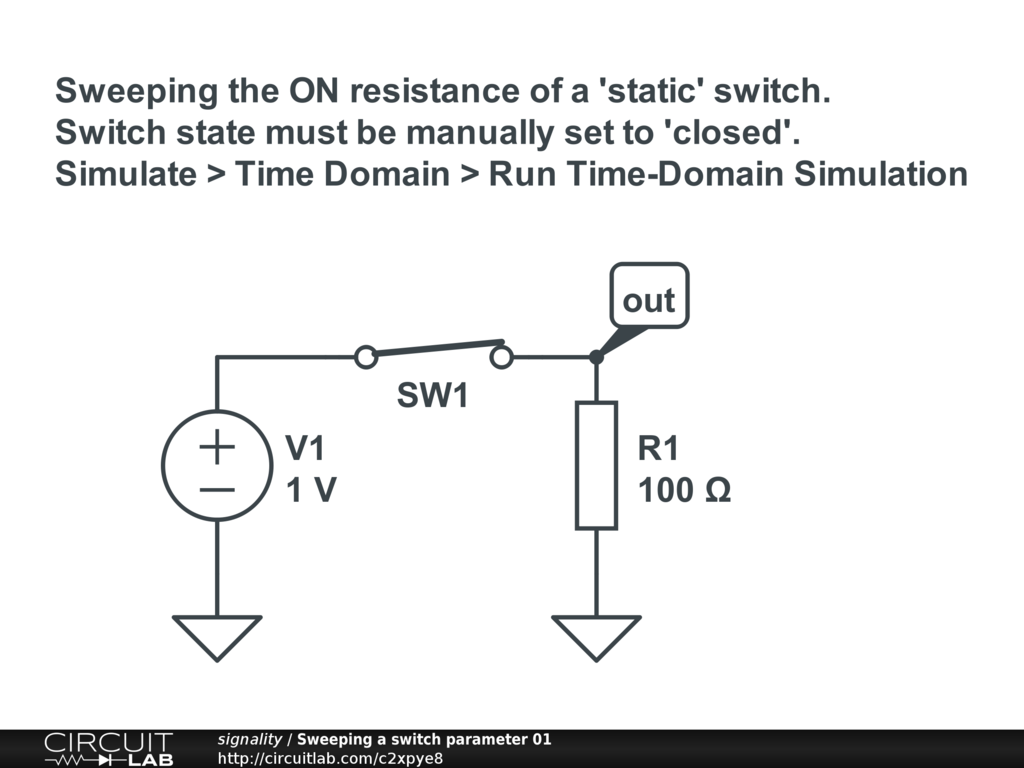

Sweeping the ON resistance of a 'static' switch.
Switch state must be set to 'closed'.

Simulate > Time Domain > Run Time-Domain Simulation
