10% to 90% switched PWM source 01

Created by	signality
Created	October 01, 2012
Last modified	October 01, 2012
Tags	behavioural-source pwm ustep

A way to generate a pulse train so that it's duty cycle switches from D to 1-D.

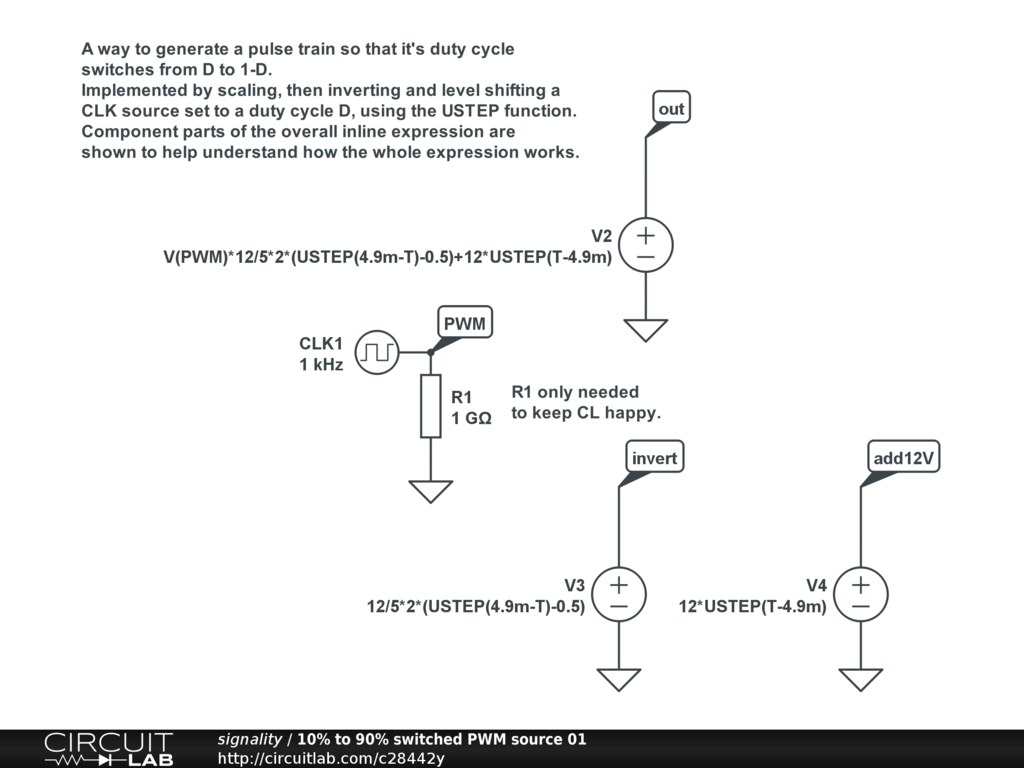

Implemented by scaling, then inverting and level shifting a CLK source set to a duty cycle D, using the USTEP function.

Component parts of the overall inline expression are shown to help understand how the whole expression works.
