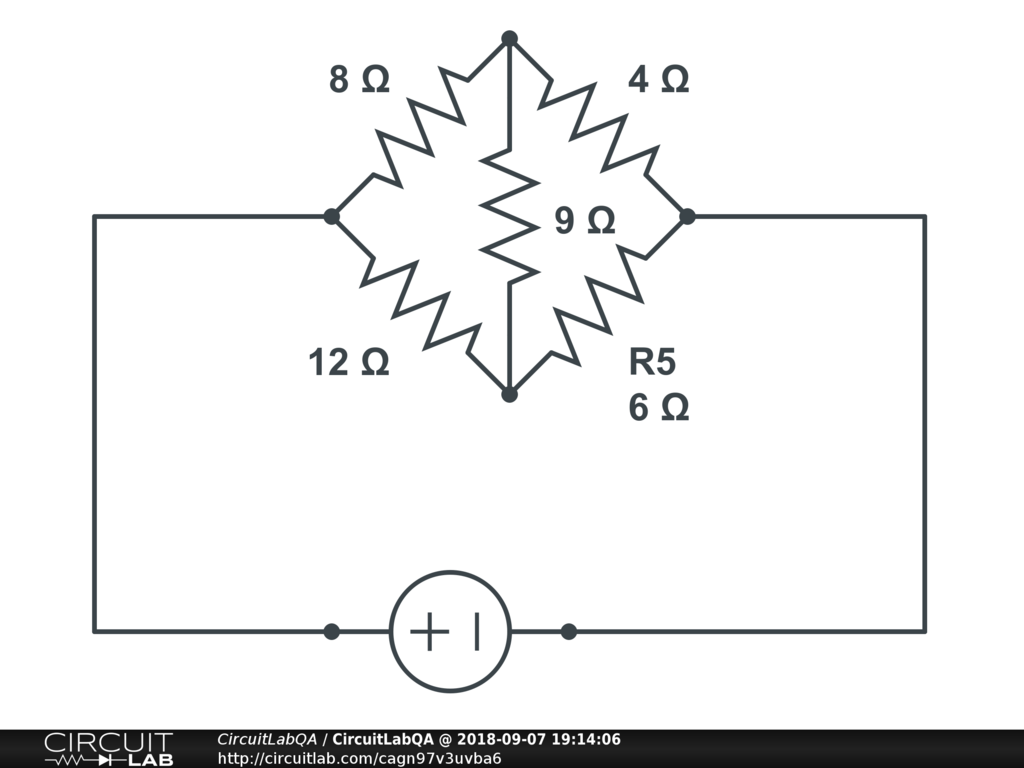

The bridge is balanced so the 9 ohm resistor has no voltage across it and sees no current. |
September 07, 2018 |
|
explain more mathematically please... i thought that 8 ohms , and 12 ohms resistors are connected in series , and similarly the 4+6 ohms resistors .. then the whole are in parallel... |
September 08, 2018 |
|
There is 1/3 volt across the 4 ohms and 1/3 volt across the 6 ohms. In my world 1/3 = 1/3. |
September 08, 2018 |
|
I suppose if you want a formal process you need to replace the 4 ohm and 8 ohm resistor by the Thevenin equivalent and then do the same for the 6 ohm and the 12 ohm. You really need to draw your circuit with + at the top. Having it sideways does not help conceptualisation. Hope this helps. mike |
September 08, 2018 |
|
September 09, 2018 |
|
|
Thanks a lot mike.It was helpful! |
