The DC sweep is not what I expect when lighting up LEDs SOLVED

I made a simple circuit with some LEDs and a transistor that is turned on by an MSP430 microcontroller which worked well. After modifying it to include 8 channels (each channel to be controlled by the MSP430), and after running a DC sweep at NODE 1, I noticed that the current peaks at about 2.4uA (at around 2V). This is a far cry from the 18-20mA (at 9V) that I was expecting. My understanding is that the 9V voltage is applied across the top wire to each of the channels which should allow 60mA of current through (each LED drawing around 20mA). Am I missing something?

I am completely new at this, so I am not able to troubleshoot very effectively. And have probably completely botched it...

My circuit is here: https://www.circuitlab.com/circuit/b8b26ednt5dq/led-circuit-with-switch/

Thanks so much for your help!

by thomaspaulwhalan
January 15, 2022

1 Answer

Answer by OakBloodThree

To simulate that action of the MCU, you should be doing a DC sweep of the input source, not the battery.

You don't need to simulate all channels separately if they're identical. You can just do one.

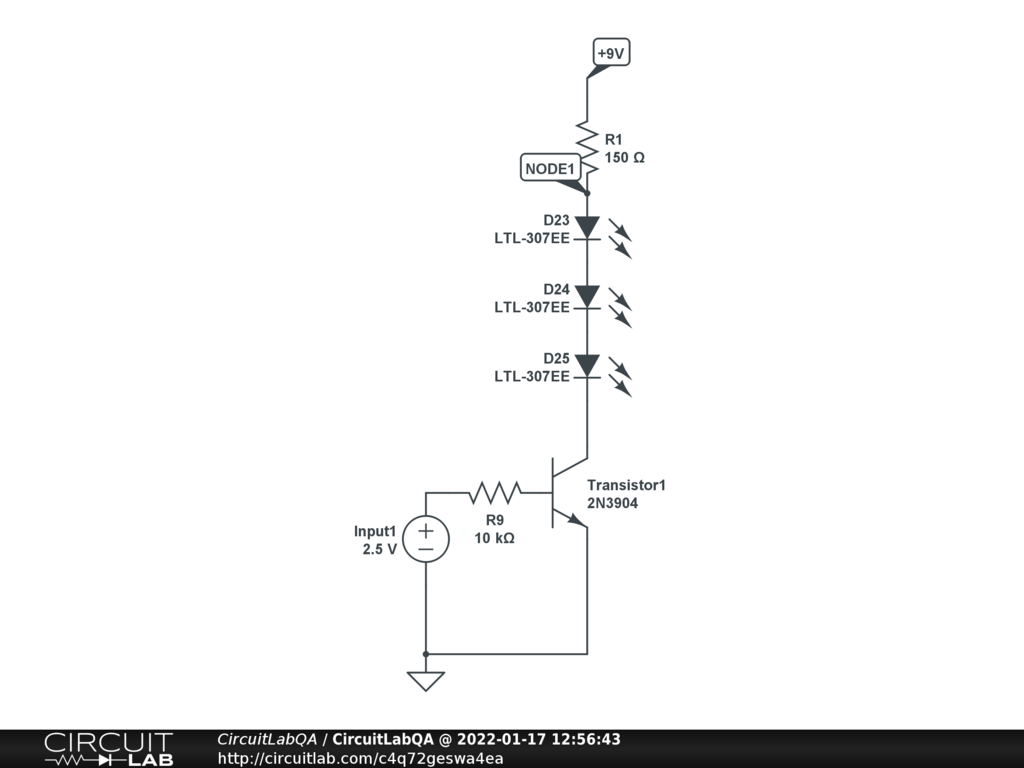

With the transistors configured in common collector (emitter followers) like you show, you will have to drive the bases a lot higher than 2.5V to get the transistors to turn on at all. Depending on the forward voltage of the LEDs, it needs probably 7 or 8 volts. Your MCU probably can't drive it high enough, so you are better off with a common emitter (low-side switch) where the LED and dropping resistor is connected between battery and collector.

Your base resistors are way too small for common emitter. They need to drop the difference between the MCU output (2.5V) and the saturated base voltage (about 0.7V). The base current will be tiny- that's the point of the transistor.

There's no need to put so many grounds there when they're all tied together with wire anyway.

https://www.circuitlab.com/circuit/hs3jpxab8p48/led-circuit-with-switch/

ACCEPTED +1 vote
by OakBloodThree
January 17, 2022

Thanks so much for your answer! I moved the transistors to the ground side like you said and that fixed the problem! Upon reflection, my original design(which worked, but was just a single channel) was constructed with the transistor next to ground, but I had no idea that changing its location would have such a dramatic impact on it. Thanks again! You have taught me an important lesson!

by thomaspaulwhalan
January 17, 2022

The reason it makes such a difference is because you need to drive the base voltage sufficiently above the emitter voltage to flow current into the base and turn on the transformer. If your original design worked, did it only have one LED, rather than 3 in series?

by OakBloodThree
January 18, 2022

It had three LEDs in series, but the transistor was in the position that you recommended, which is why it worked the first time. I don't know why I re-positioned it when adding the extra channels, but I at least got to learn something new by messing it up and having to ask for help. Thanks again!
