Description

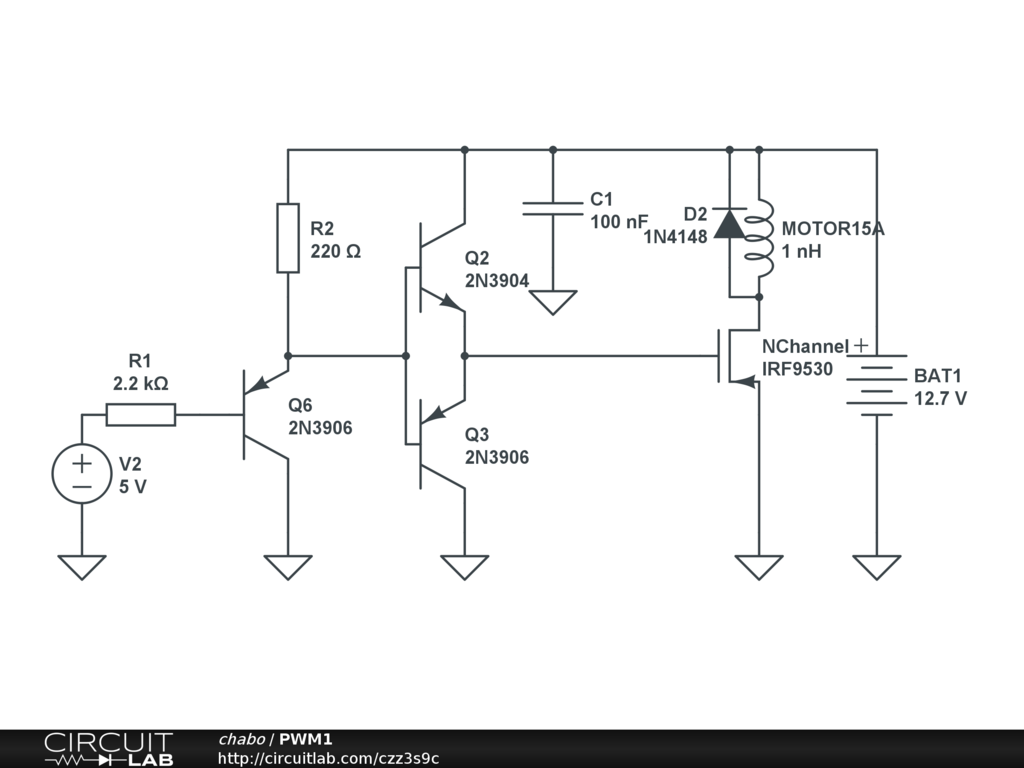

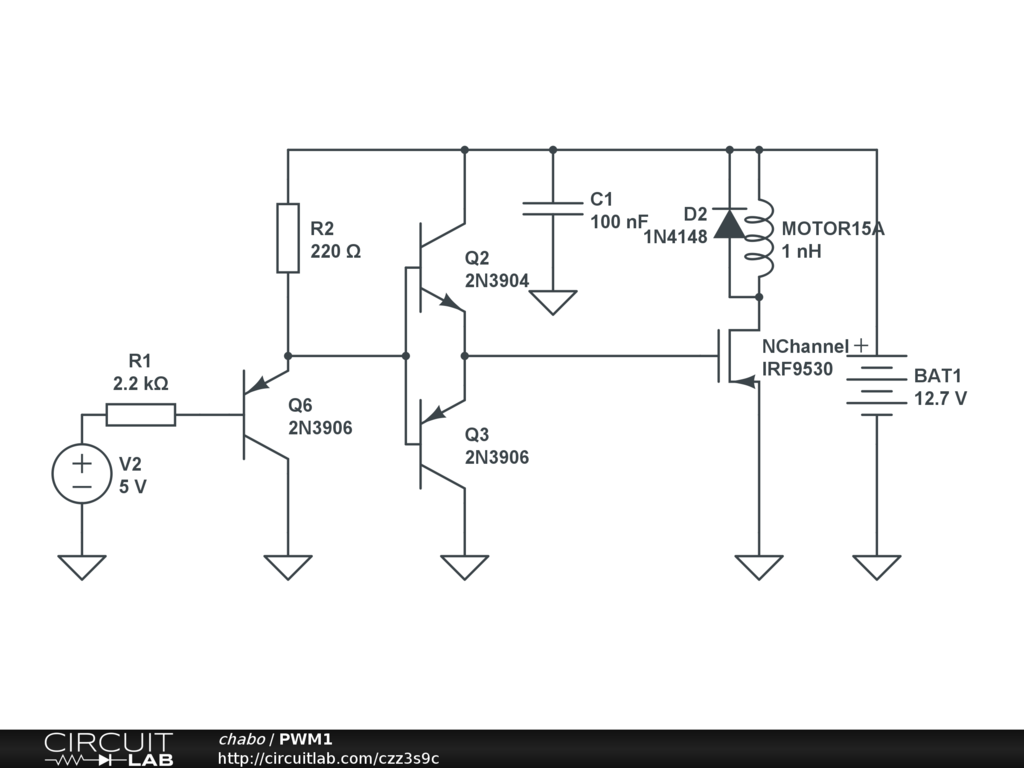

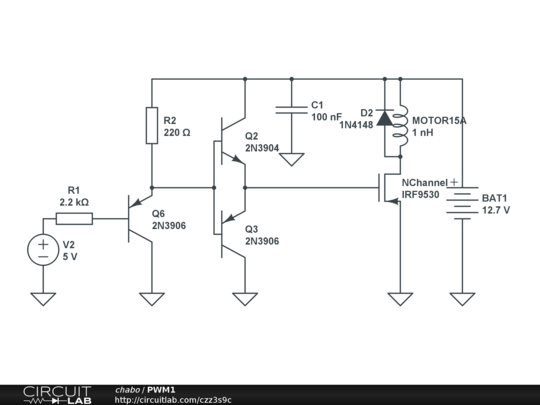

El Mosfet es un IRF540n, canal N, no es el que aparece en el esquema. Circuito todavia sin probar. La fuente de 5v se supone que es una salida de 5v PWM, y el motor en principio deberia soportar uno de unos 10 o 15A, utilizando un disipador.
