LED, D1 illuminates only when power is applied but fuse has
gone open circuit.
Simulate > Time Domain > Run Time-Domain Simulation
http://signality.co.uk

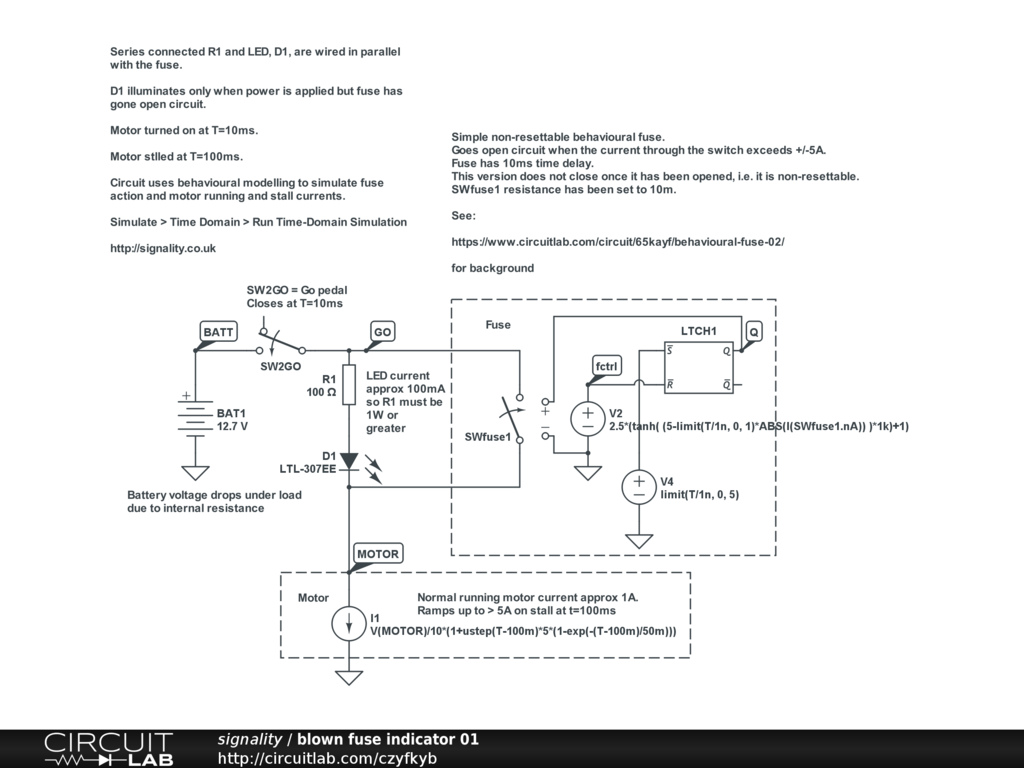

Series connected R1 and LED, D1, are wired in parallel with the fuse.
D1 illuminates only when power is applied but fuse has gone open circuit.
Motor turned on at T=10ms.
Motor stlled at T=100ms.
Circuit uses behavioural modelling to simulate fuse action and motor running and stall currents.
Simulate > Time Domain > Run Time-Domain Simulation
