Tags oscillator

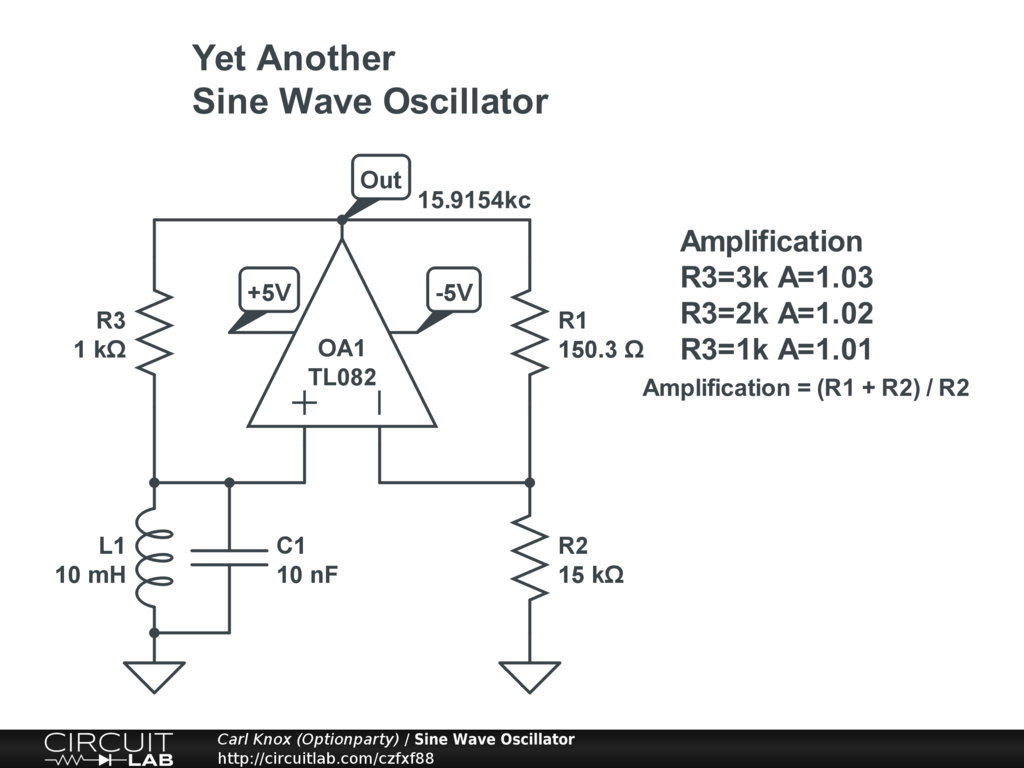

Simple - no automatic gain control (agc)


This circuit has the most promise of producing the purest "Sine Wave".
The small amount of amplification to sustain oscillations, should reduce distortion.
The balance of resistances are selected to just sustain oscillations.
