MOSFET LED strip switching - fixed PUBLIC

Created by
Created June 10, 2019
Last modified June 11, 2019
Tags mosfet   power   switching

Summary

Corrected application of an IRF540 MOSFET to switch a load. Not ideal for fast-switching/PWM as shown.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

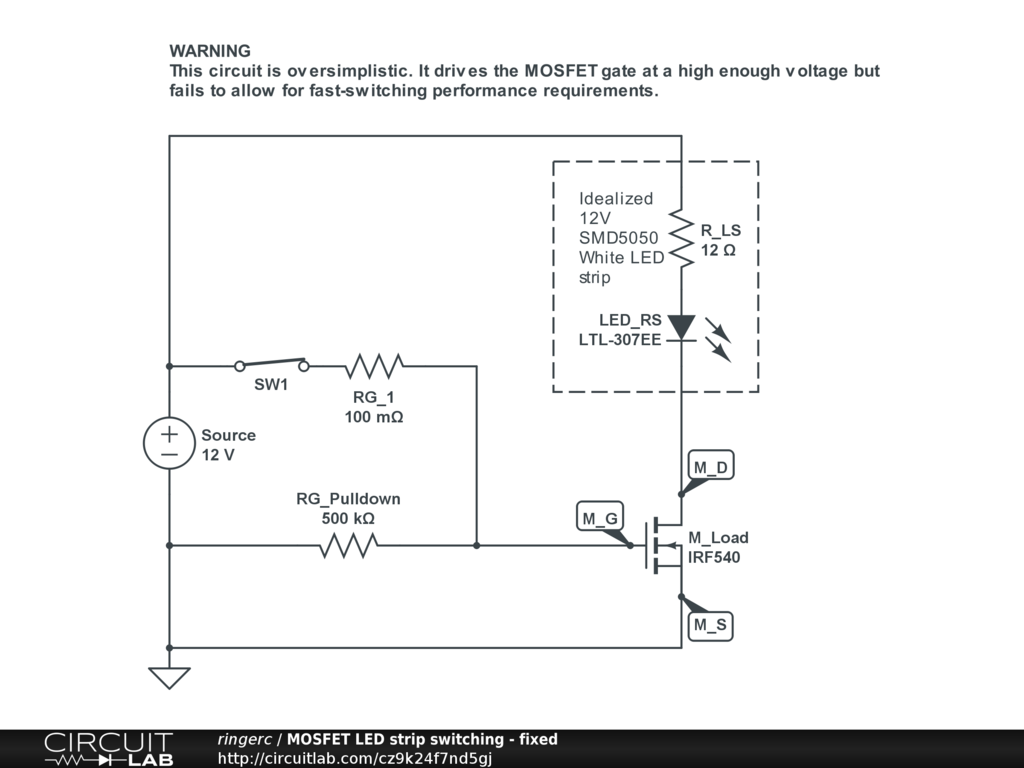

Revised basic MOSFET switch - simplistic, but works.

This is the corrected reference circuit for https://electronics.stackexchange.com/q/442792/146535 . Unlike the first circuit the MOSFET is on the low-side of the load so VS ≈ 0V and VGS ≈ 12V, well and truly enough to drive the gate.

See https://www.circuitlab.com/circuit/qs4g4dfh3rr7/mosfet-led-strip-switching-wrong-1/ for the incorrect version.

Note that this version doesn't include any gate driver circuit to enhance on/off performance, so it'll probably perform poorly for fast switching.
