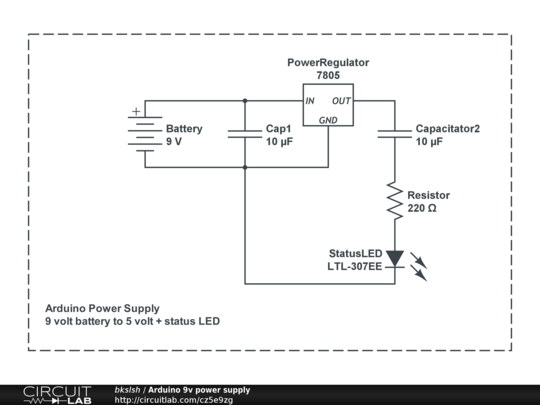

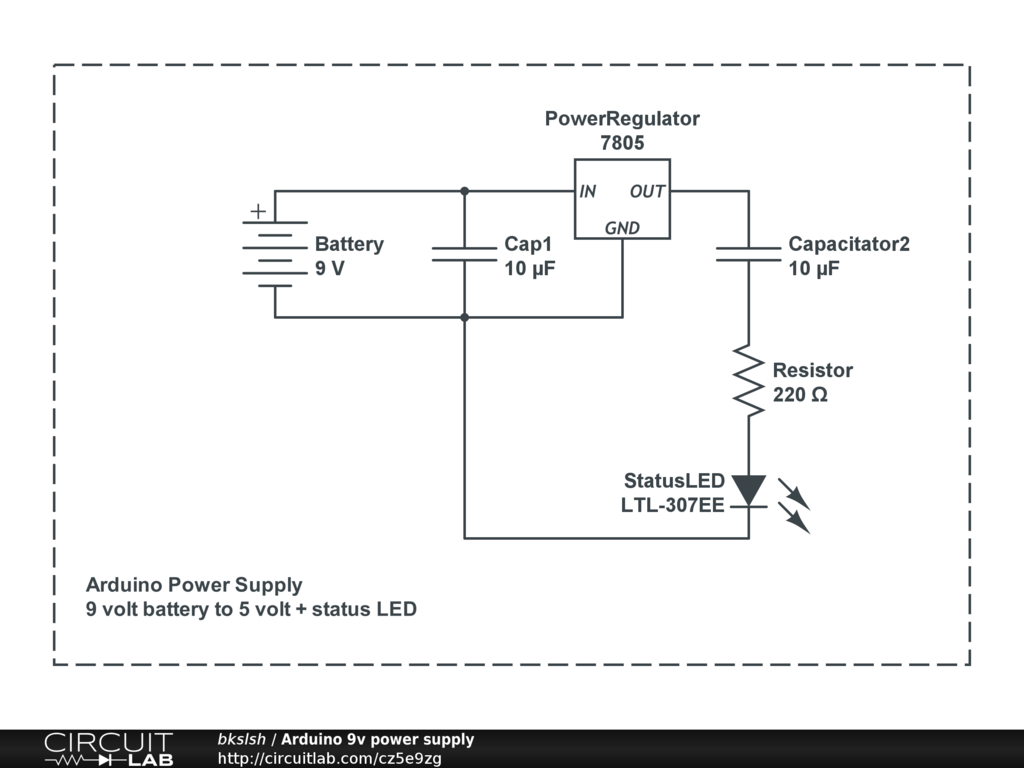

Basic Arduino power supply circuit. Super simple - just a 9 volt battery and a status LED. The 5v and ground lines can be used by the ATMega chip or any other components.
This design is used by the below examples:
"Arduino on a breadboard design": http://itp.nyu.edu/physcomp/Tutorials/ArduinoBreadboard
Make Magazine's Mintduino: http://make-guide-pdfs.s3.amazonaws.com/guide_608_en.pdf
