Common Mode Choke 01

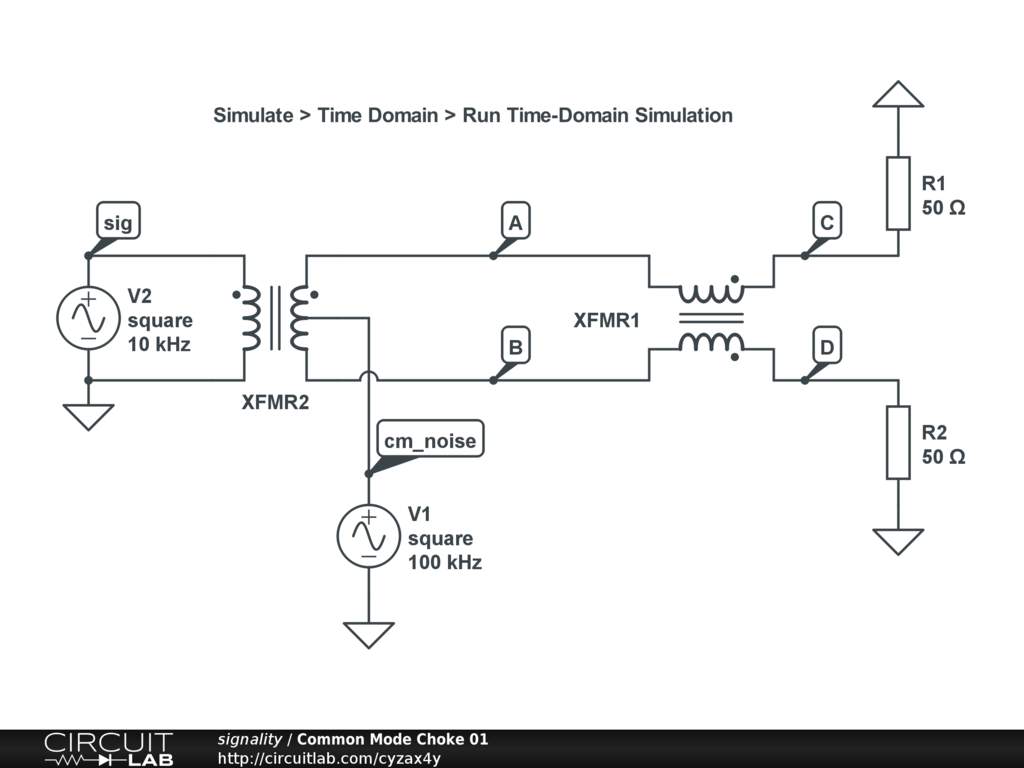

Demonstration of the effects of a common mode choke.

Simulate > Time Domain > Run Time-Domain Simulation
