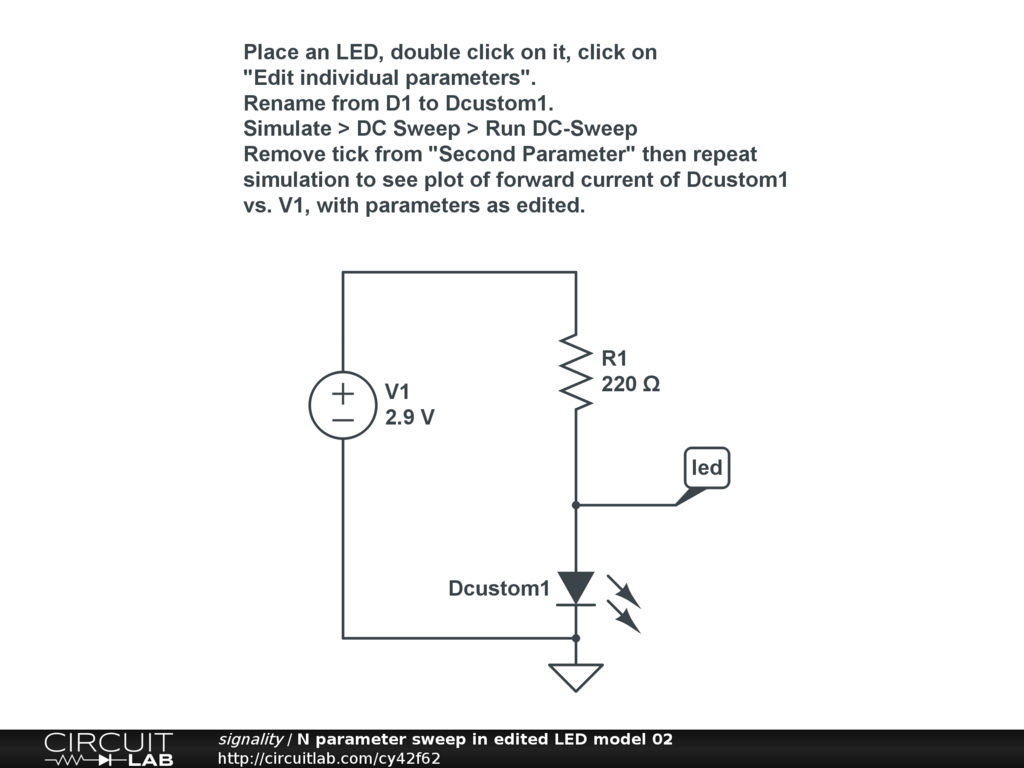

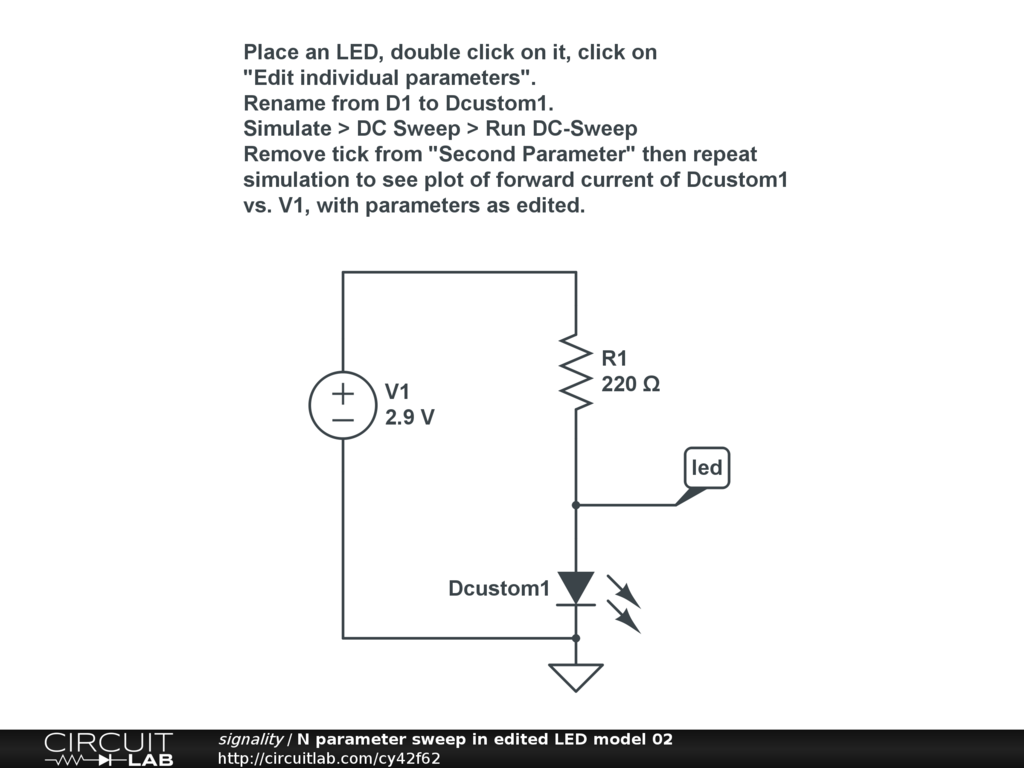

N parameter sweep in edited LED model 02

SImilar to N parameter sweep in edited LED model 01 but showing change in forward current vs, V1 for different values of N.
