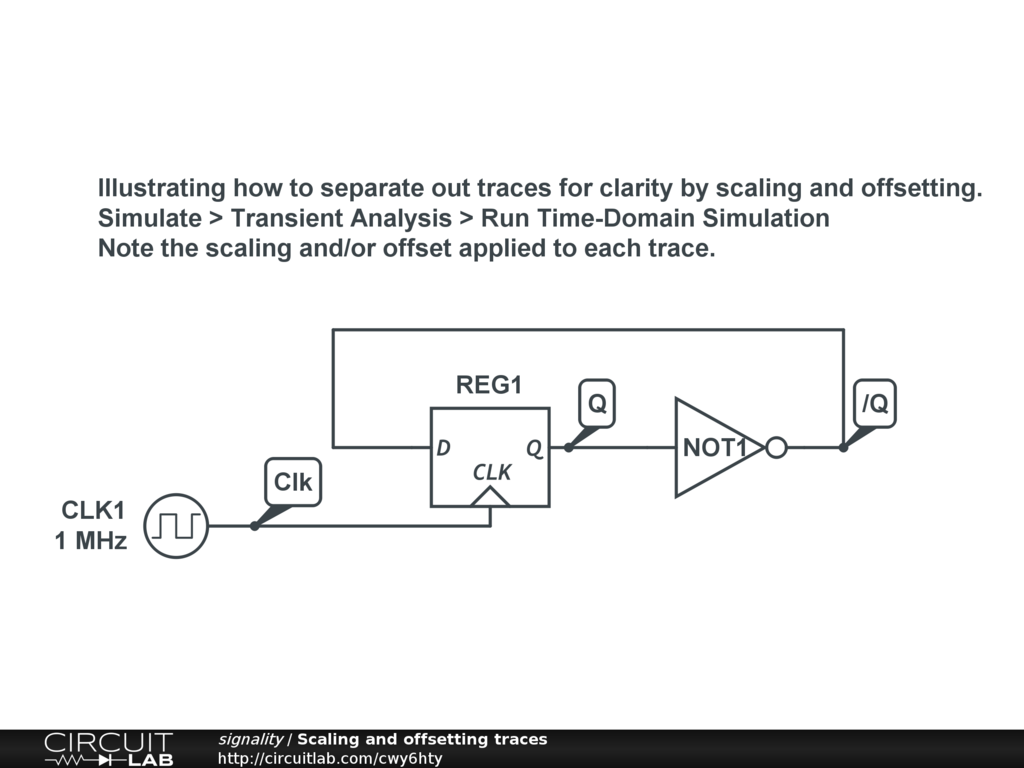

An illustration of how to use expressions to manipulate waveforms to help clarify a complicated or overlapping waveform display.
An illustration of how to use expressions to manipulate waveforms to help clarify a complicated or overlapping waveform display.
It does make the display clearer but you have to remember to take the arithmetic into account (i.e. apply the inverse of the scaling and offset) if you read the trace values!
