Tags 12v   ac-to-dc   power-supply


Not provided.

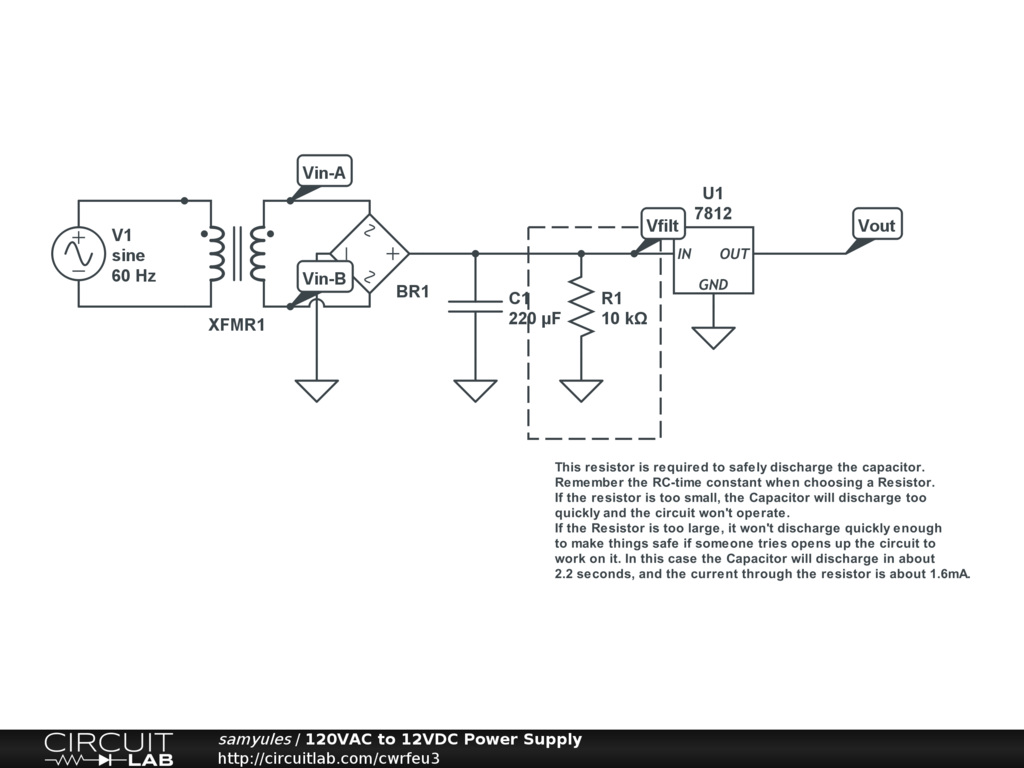

This is an example of a regulated 120 VAC to 12 VDC Power Supply. The voltage first passes through a step-down transformer, then through a passive RC filter section, then through a voltage regulator IC.
