Y5V curve 01

Created by	signality
Created	May 18, 2012
Last modified	May 21, 2012
Tags	capacitor-distortion dielectric-constant y5v

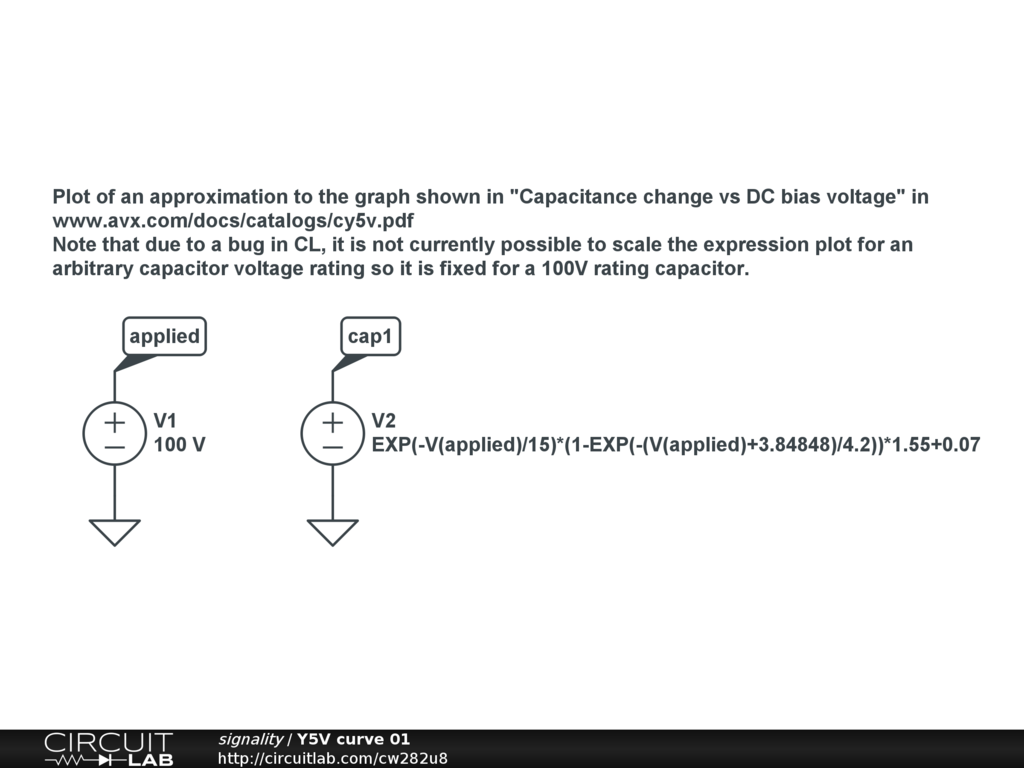

Plot of an approximation to the graph shown in "Capacitance change vs DC bias voltage" in
www.avx.com/docs/catalogs/cy5v.pdf
