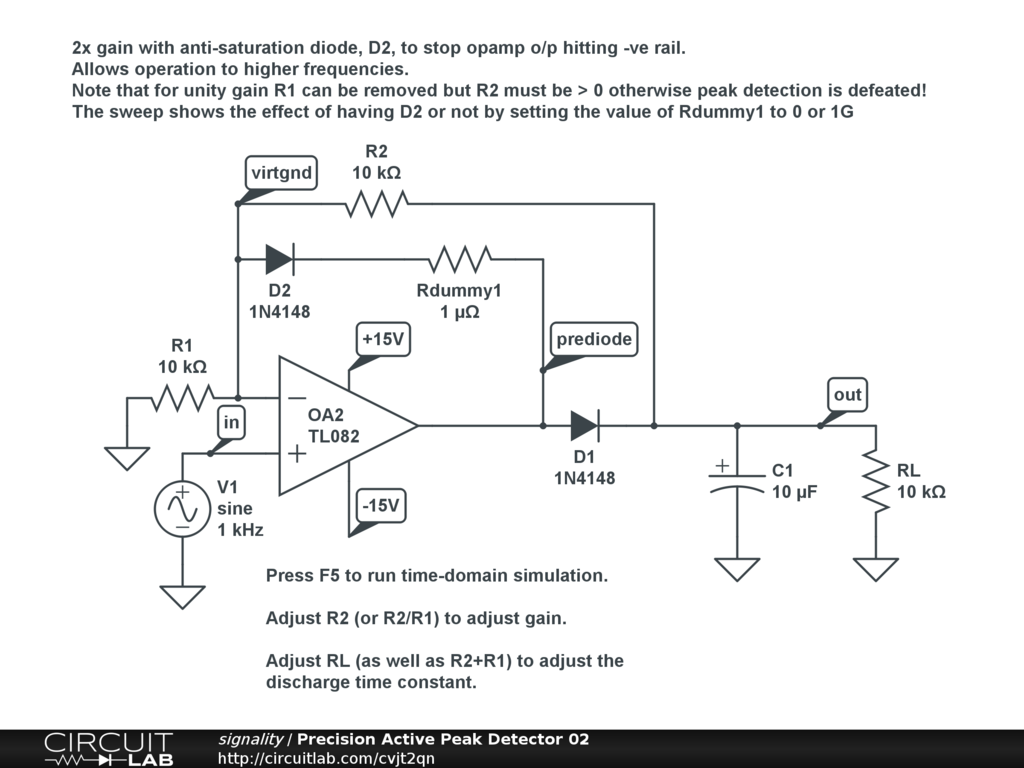

2x gain with anti-saturation diode, D2, to stop opamp o/p hitting -ve rail.
Allows operation to higher frequencies.
Note that for unity gain R1 can be removed but R2 must be > 0 otherwise peak detection is defeated!
The sweep shows the effect of having D2 or not by setting the value of Rdummy1 to 0 or 1G
