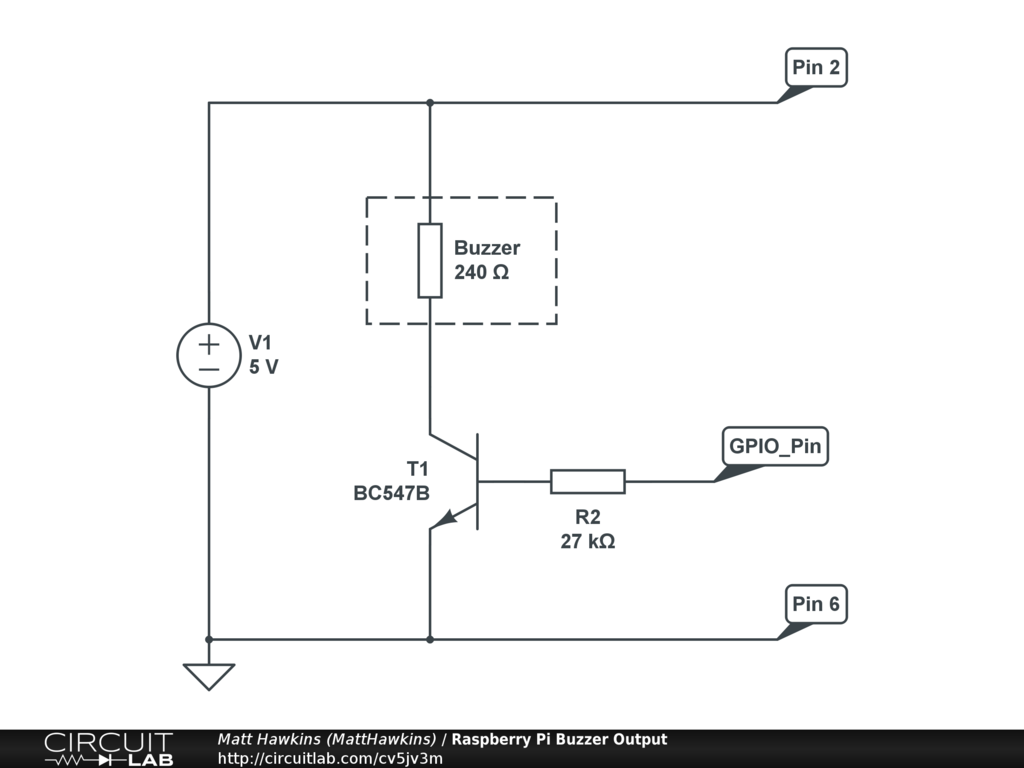

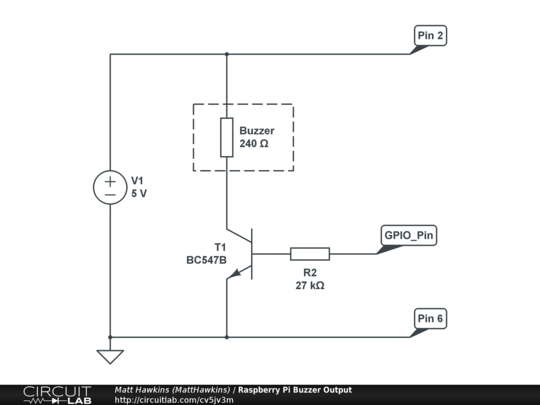

Circuit showing how to control a simple buzzer using a Raspberry Pi GPIO pin configured as an output.


Description

This circuit shows to turn a buzzer on and off using a GPIO pin configured as an output.

The buzzer I used was a basic 6V device with an internal resistance of 240 ohms. This means it draws 20mA with a 5V supply.

R2 limits current from the GPIO pin. GPIO is either 0v or 3.3V so max current into base of transistor is 3.3/27000 = 120uA.

The transistor could be a BC547, BC548 or equivalent.

I have tested this circuit and it works fine.

Please visit my Raspberry Pi website for further information RaspberryPi-Spy.co.uk
