PWM output voltages

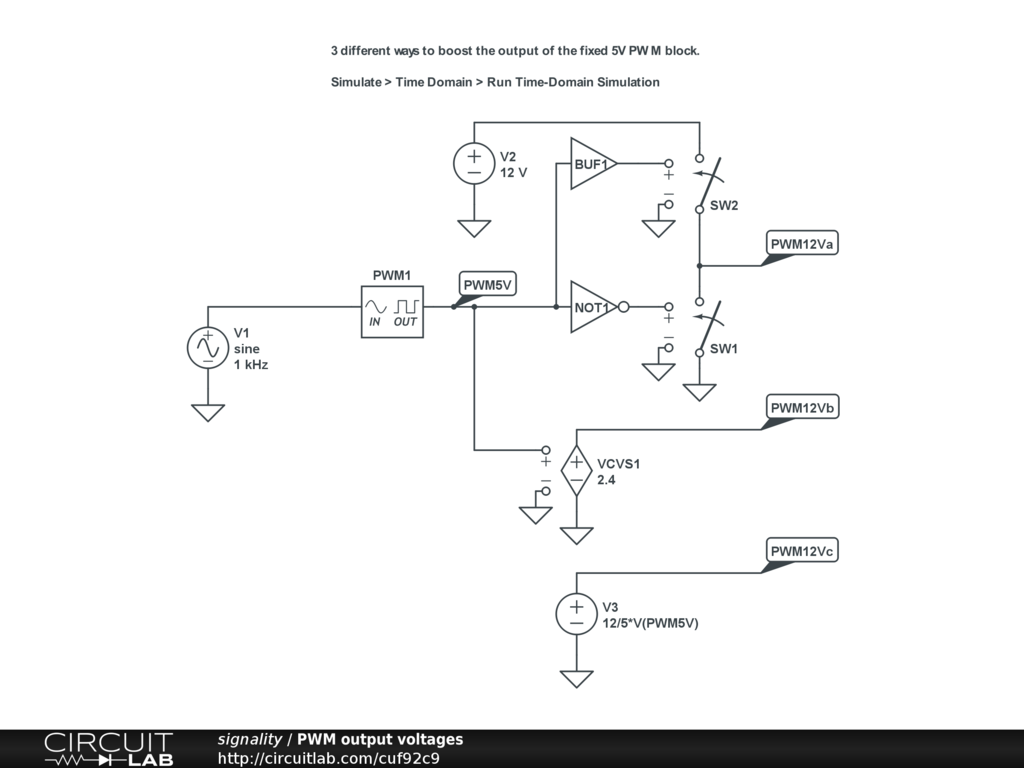

3 different ways to boost the output of the fixed 5V PWM block.

Simulate > Time Domain > Run Time-Domain Simulation
