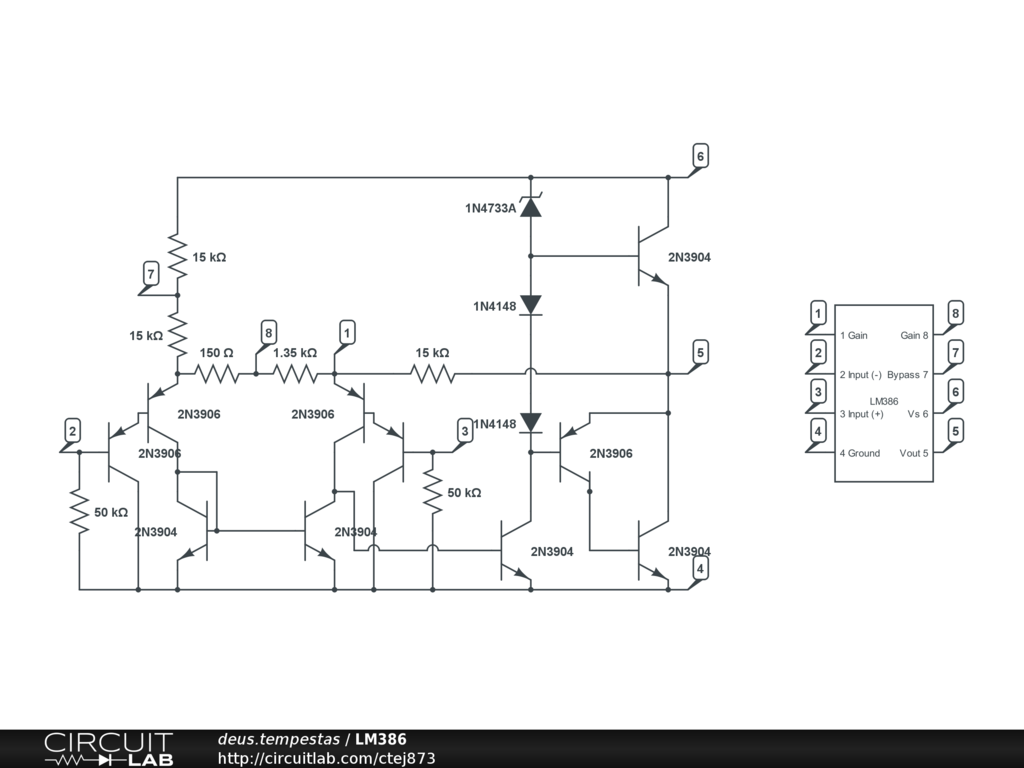

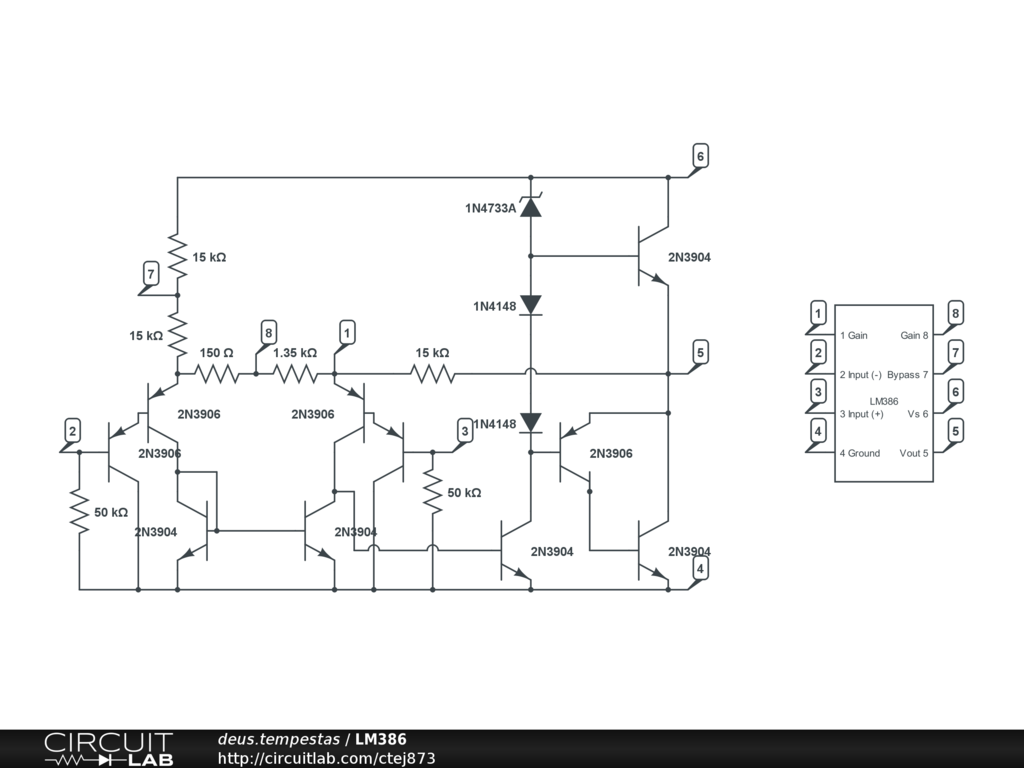

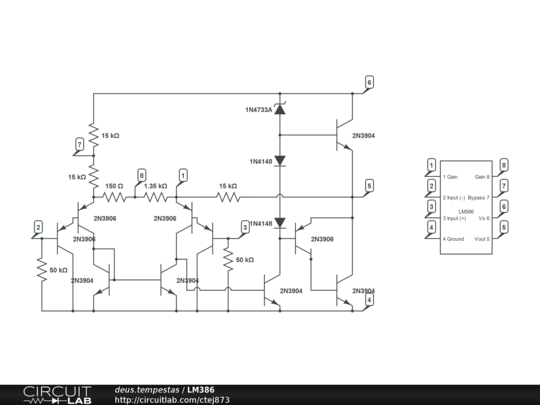

LM386 internal circuit. Should be a drop in working IC, (maybe) Nodes should make it work. (I hope)
Datasheet http://www.ti.com/lit/ds/symlink/lm386.pdf
