Dream-Rig Circuit 6 PUBLIC

Created by
Created 2 hours, 6 minutes ago
Last modified 2 hours, 2 minutes ago
Tags 60w-guitar-amp

Summary

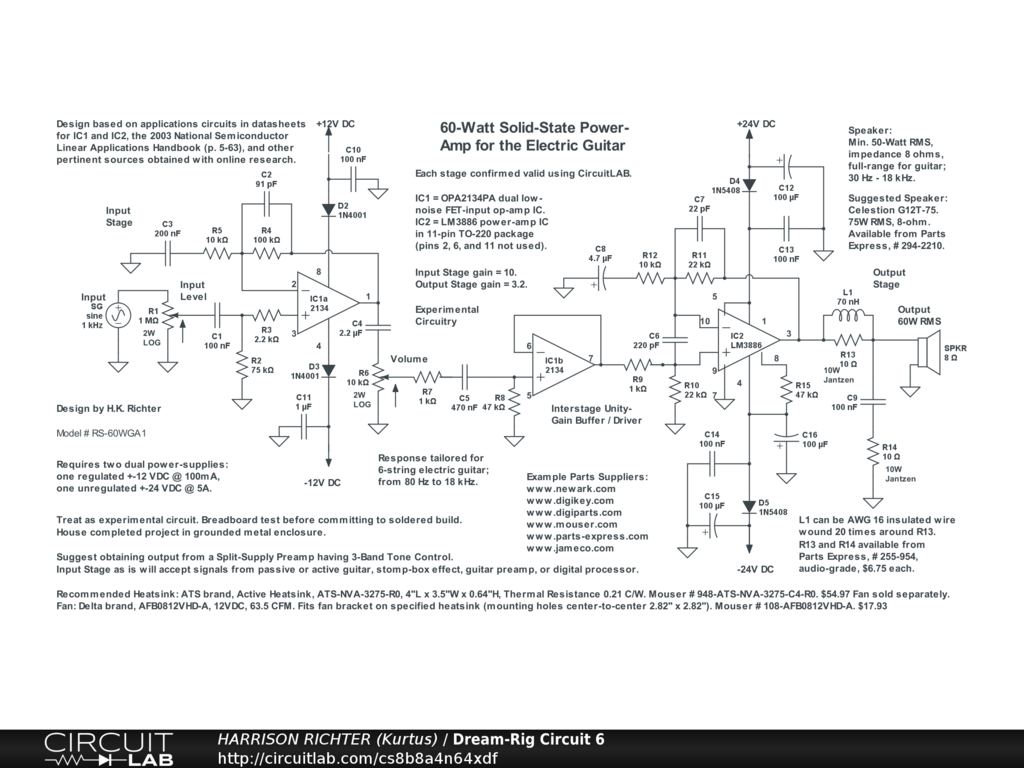

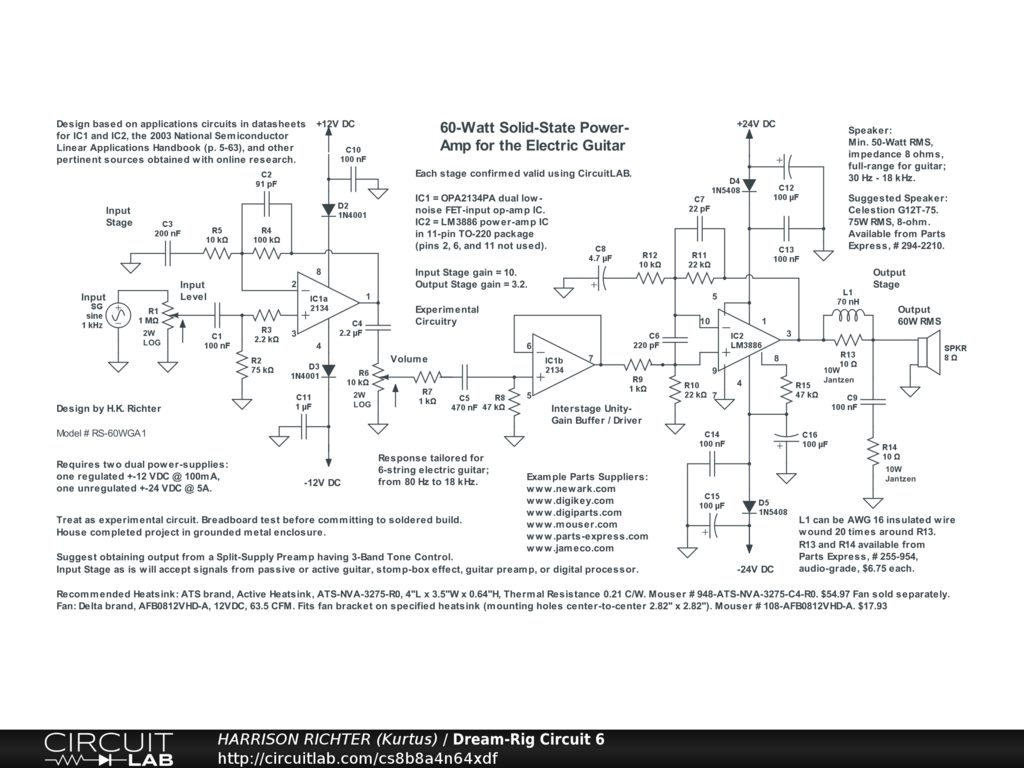

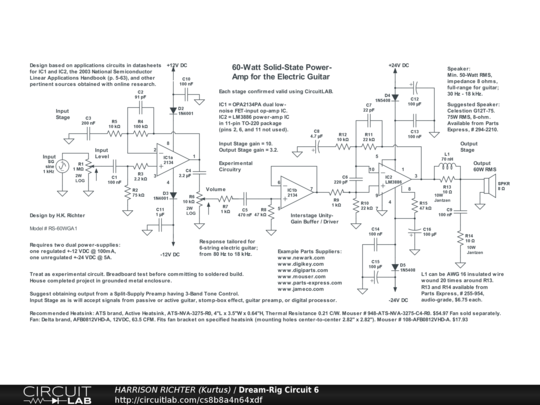

60-Watt RMS Guitar Amplifier

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

60-watt RMS guitar amplifier circuit for the Dream-Rig Project.

Comments

No comments yet. Be the first!
