Created by
Created August 10, 2020
Last modified August 12, 2020
Tags No tags.

Summary

Not provided.


Description

Not provided.


Comments

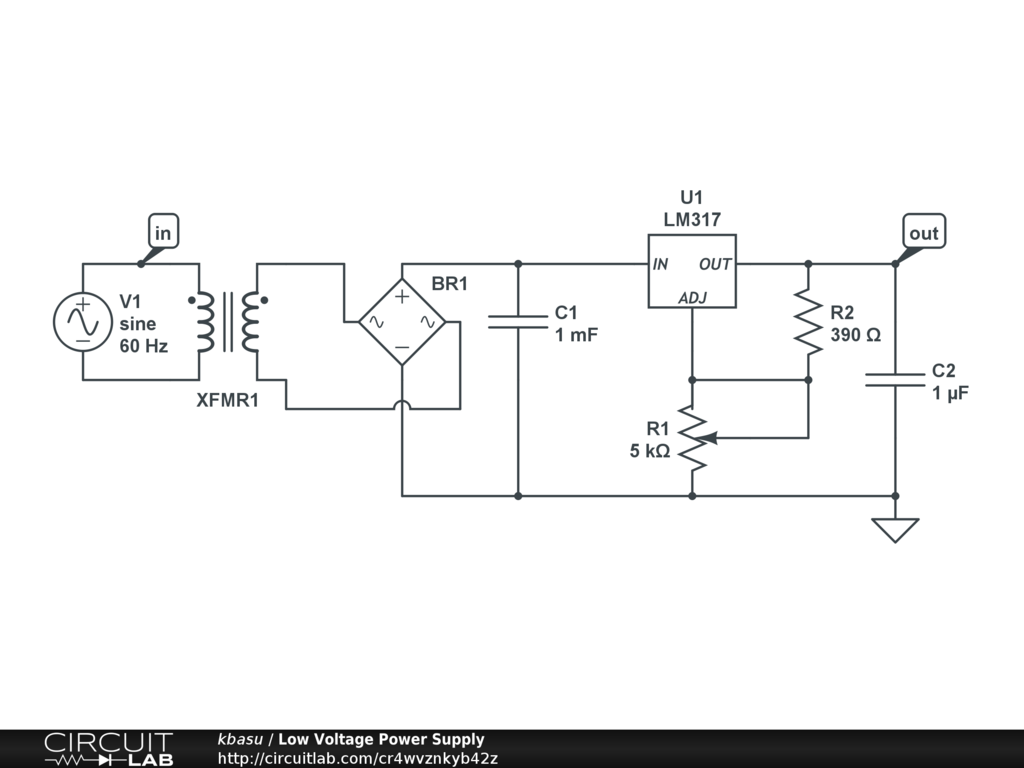

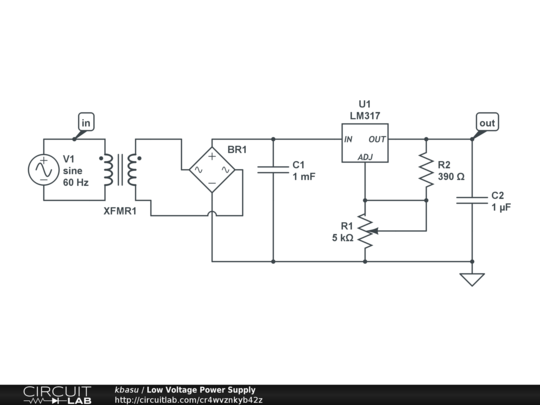

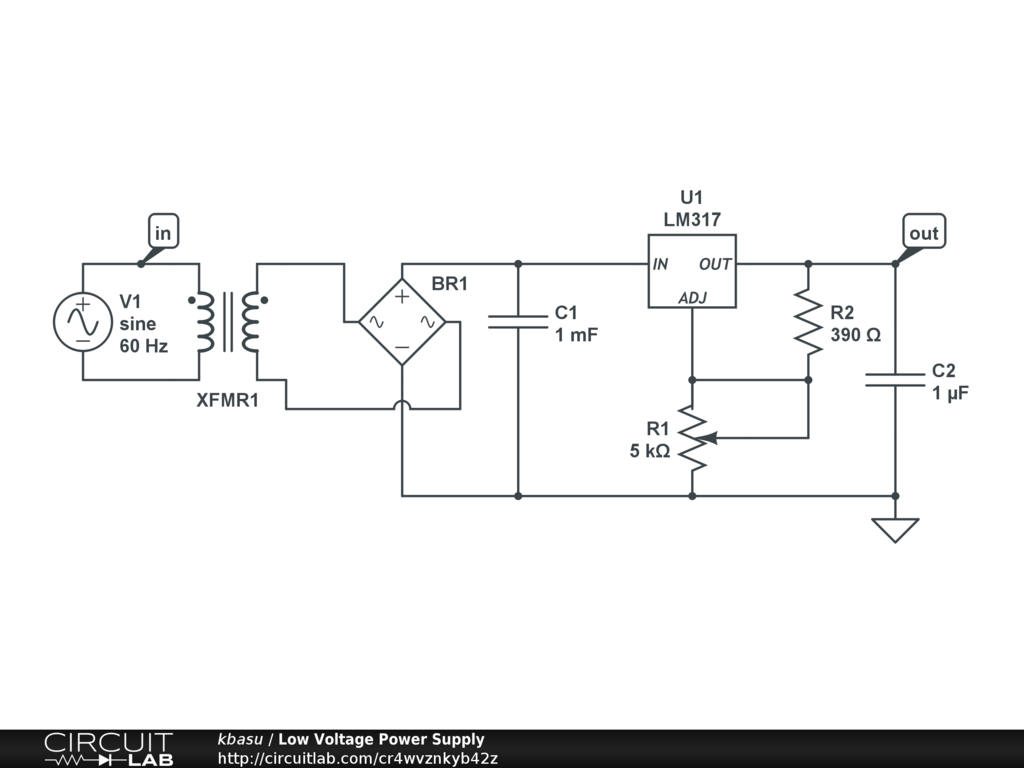

I note that you have defined V1 as a 120v sine wave. Were you trying to simulate a domestic 120v ac utility power supply? If so perhaps you don't realize that for a sine wave the CircuitLab definition of voltage magnitude is 0 to peak, not rms. So to simulate a domestic utility 120v ac rms you will have to define V1 as 1.414 * 120 or 169.7v. This will give 120v rms

by Foxx
August 12, 2020

Thanks so much! I completely overlooked that!

by kbasu
August 12, 2020
