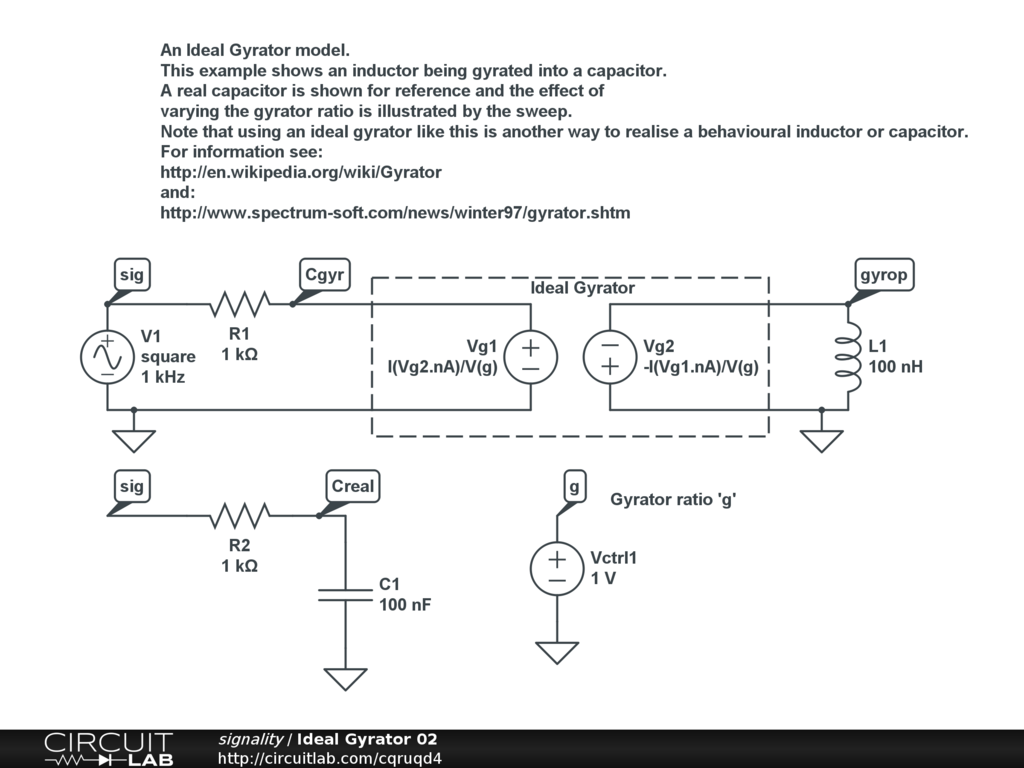

An Ideal Gyrator model.
This example shows an inductor being gyrated into a capacitor.
A real capacitor is shown for reference and the effect of
varying the gyrator ratio is illustrated by the sweep.
Note that using an ideal gyrator like this is another way to realise a behavioural inductor or capacitor.

For information see:



Not provided.
