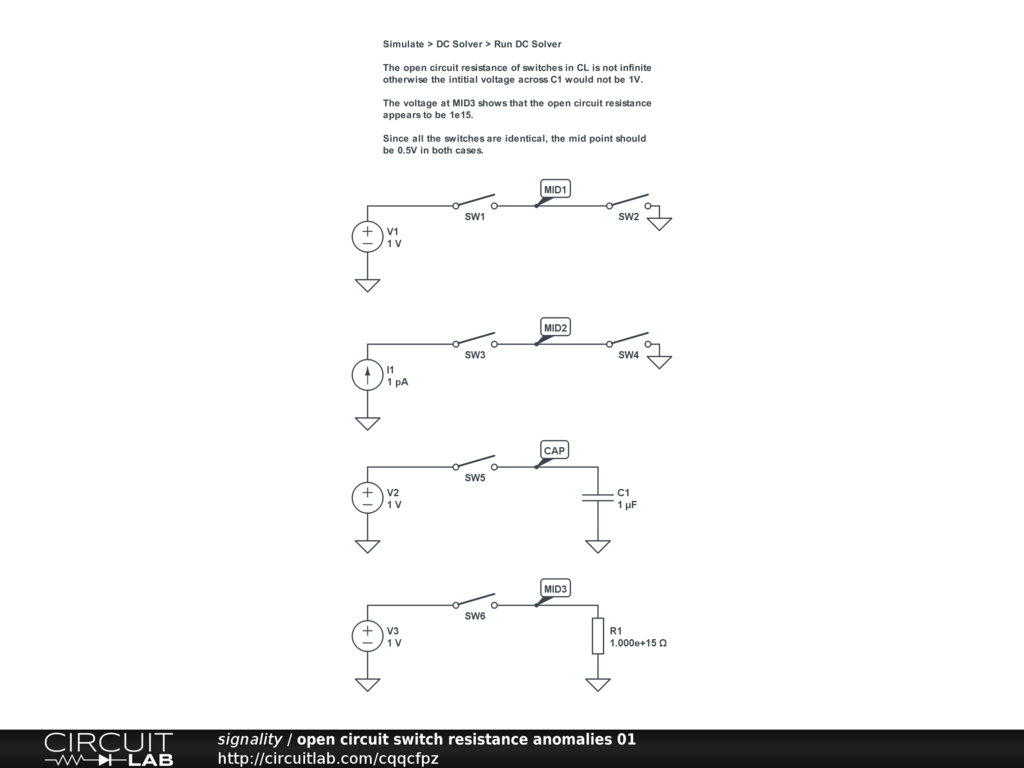

The open circuit resistance of switches in CL is not infinite
otherwise the intitial voltage across C1 would not be 1V.
Simulate > DC Solver > Run DC Solver
Simulate > DC Solver > Run DC Solver
The open circuit resistance of switches in CL is not infinite otherwise the intitial voltage across C1 would not be 1V.
The voltage at MID3 shows that the open circuit resistance appears to be 1e15.
Since all the switches are identical, the mid point should be 0.5V in both cases.
