behavioural linear regulator 01

Created by	signality
Created	July 02, 2012
Last modified	July 12, 2012
Tags	behavioural-regulator linear-regulator voltage-regulator

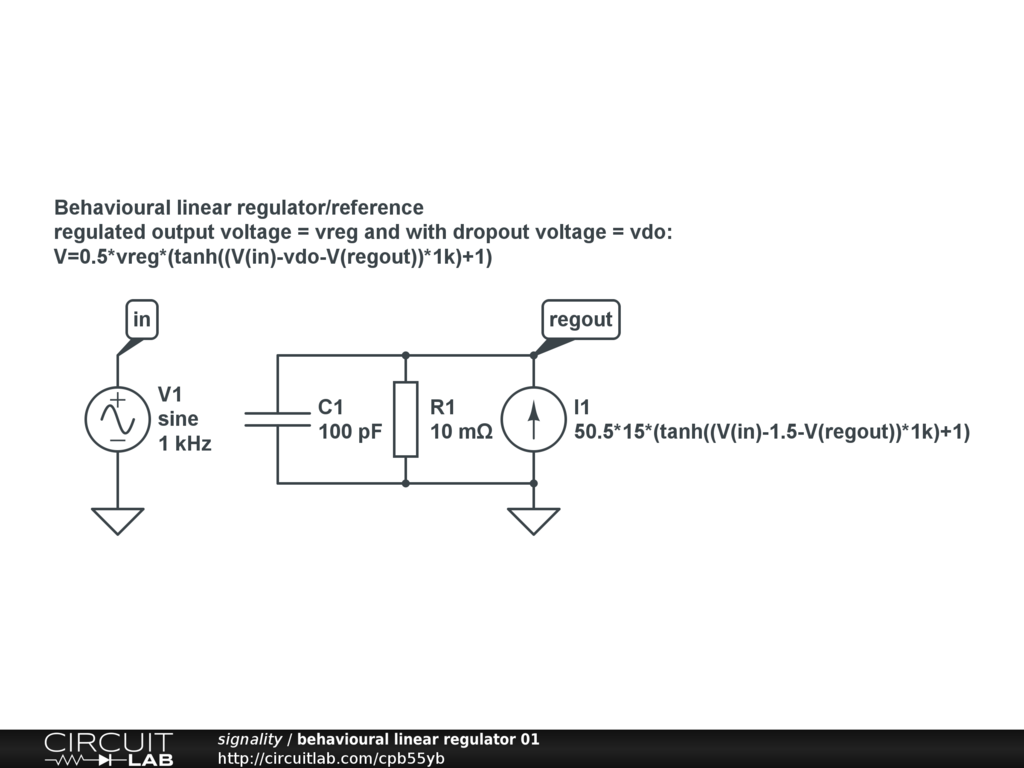

Behavioural linear regulator.
Can also be realised using a behavioral voltage source.
