A possible solution was simply to :

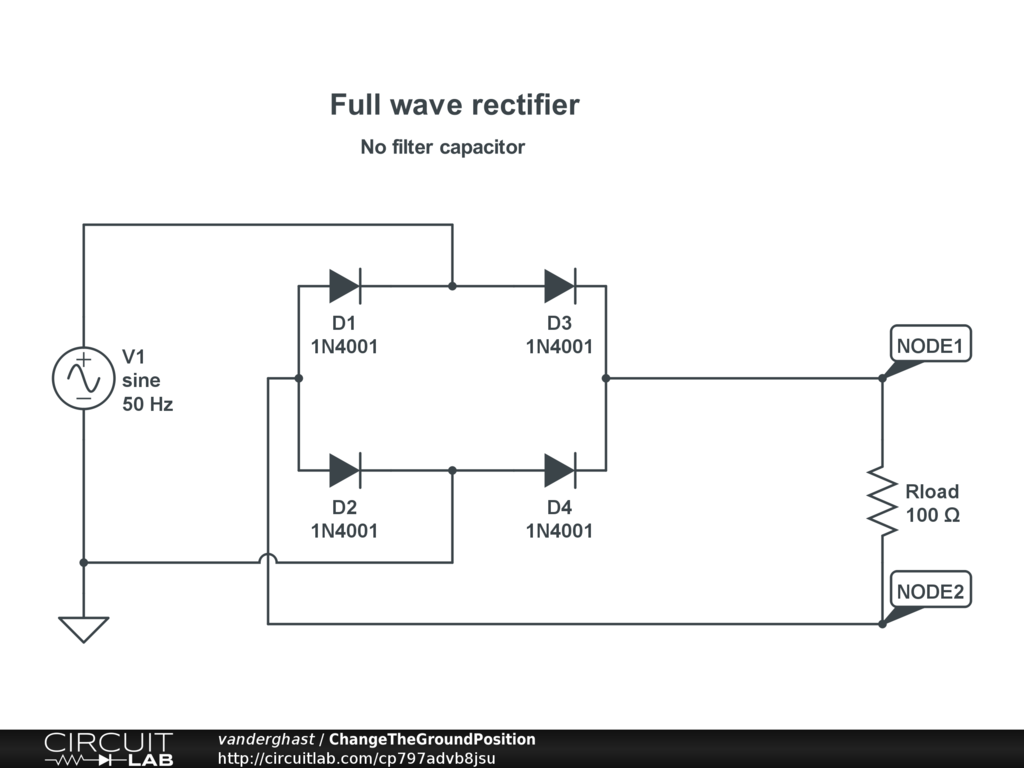

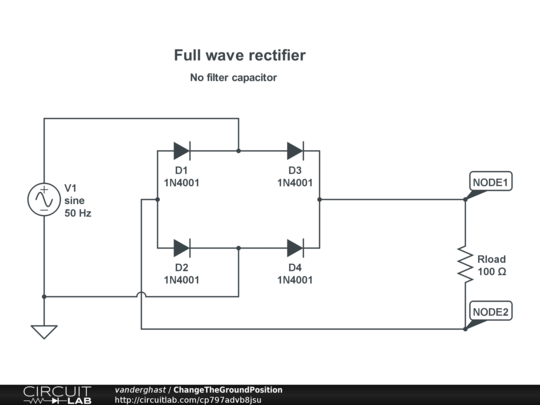

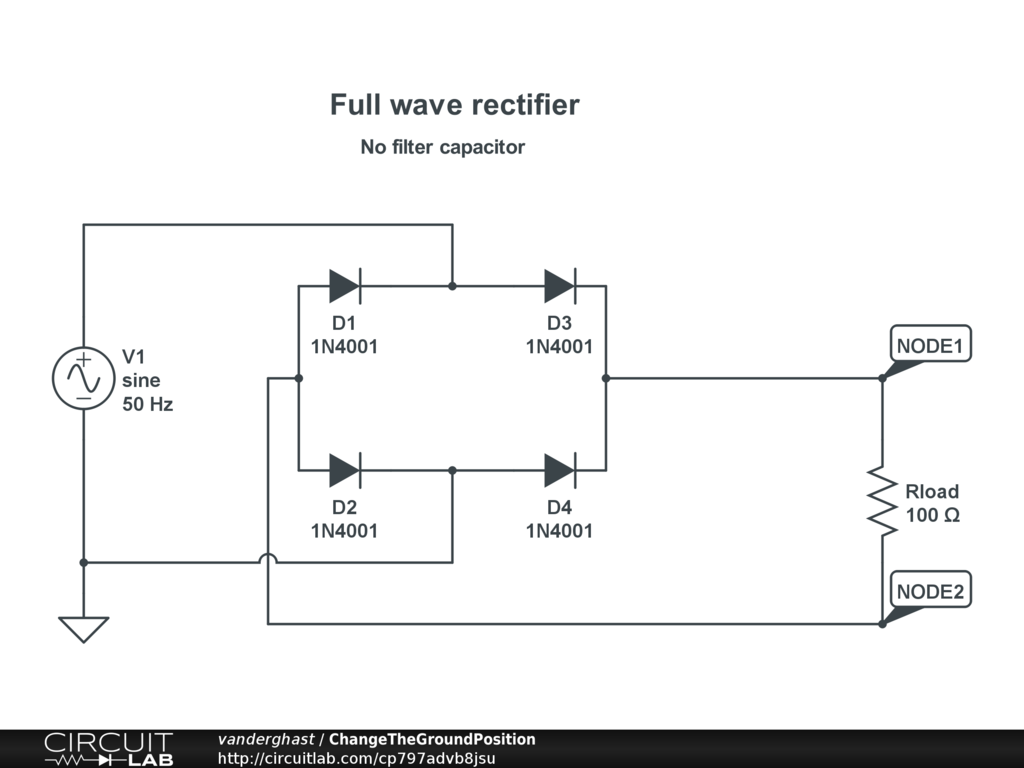

-- change the position of the ground. If you grounded "Node2", since all the grounds are connected, you will bypass diode D2, changing the full bridge rectifier for something "else".

-- plot the difference of voltage between Node1 and Node2 to get the full wave rectified.

Run the simulate button to get a nice graph of the three voltages: at node1, at node2 and their difference.
