D/A with inverting amplifier

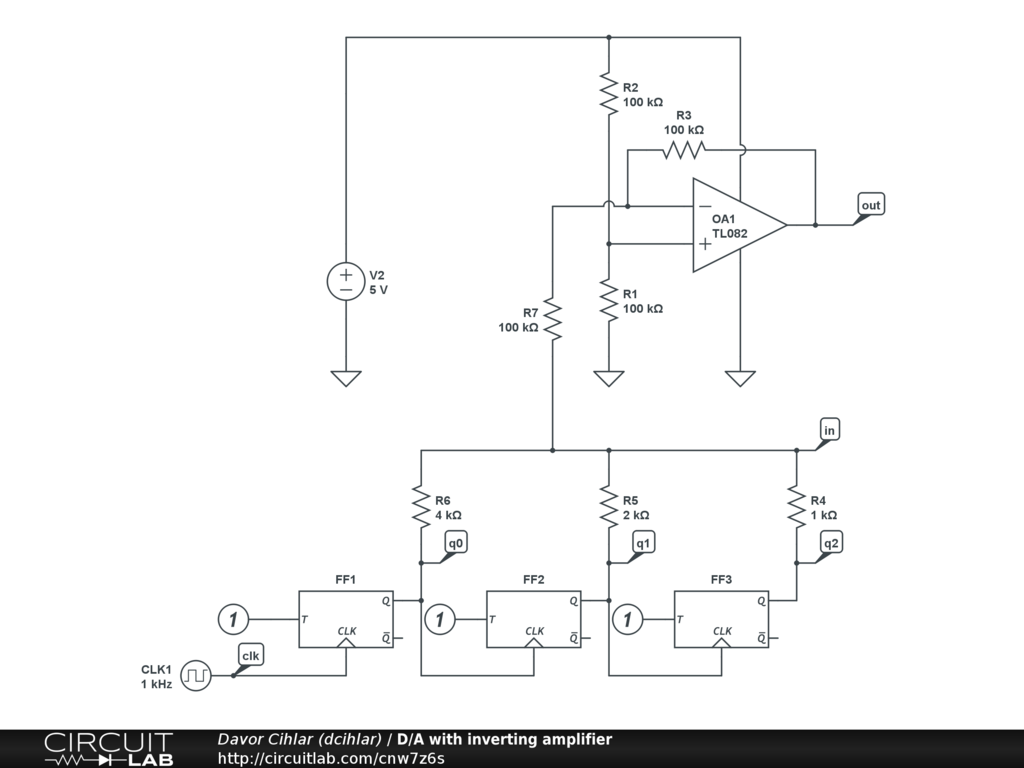

Weighted resistors D/A converter driven by the 3-bit counter and amplified with the inverting amplifier.
