Demonstration of how to select which devices and their parameters that you want to sweep.


Simulate > DC Sweep > Run DC Sweep

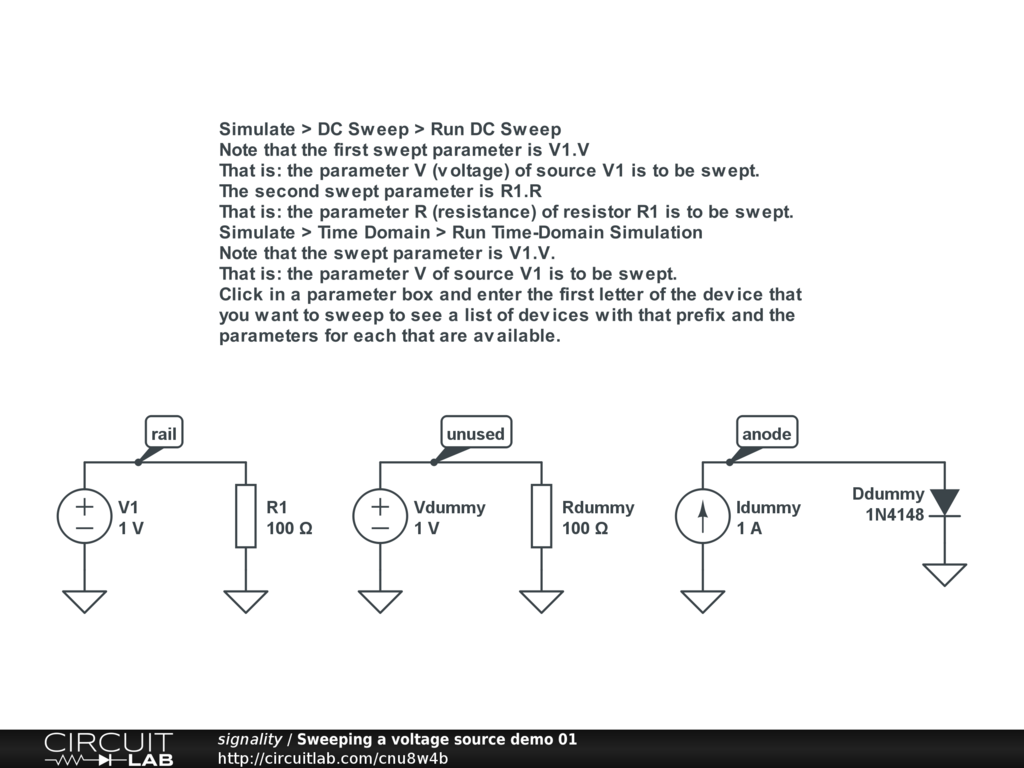

Note that the first swept parameter is V1.1 That is: the parameter V (voltage) of source V1 is to be swept.

The second swept parameter is R1.R That is: the parameter R (resistance) of resistor R1 is to be swept.

Simulate > Time Domain > Run Time-Domain Simulation

Note that the swept parameter is V1.1. That is: the parameter 1 of source V1 is to be swept.

Click in a parameter box and enter the first letter of the device that you want to sweep to see a list of devices with that prefix and the parameters for each that are available.
