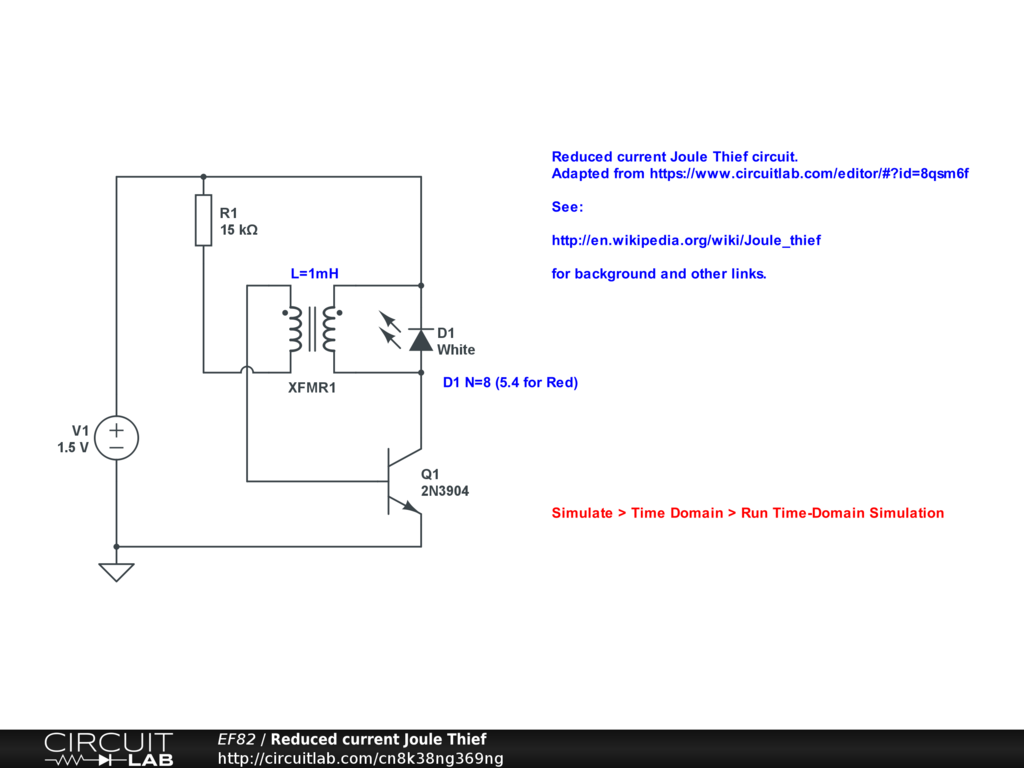

Reduced current Joule Thief

A lower current version of a common circuit.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

LED cathode connected to +ve supply instead of GND.

Supply current 7mA average. Av/Peak LED current 3.2/20mA. Frequency 43kHz approx.

For comparison, with D1 K connected to GND:-

Supply current 10.7mA average. Av/Peak LED current 5.3/20mA. Frequency 34kHz approx.

To Do

For a real build: Is there a perceptible difference in LED brightness between to two configurations?
