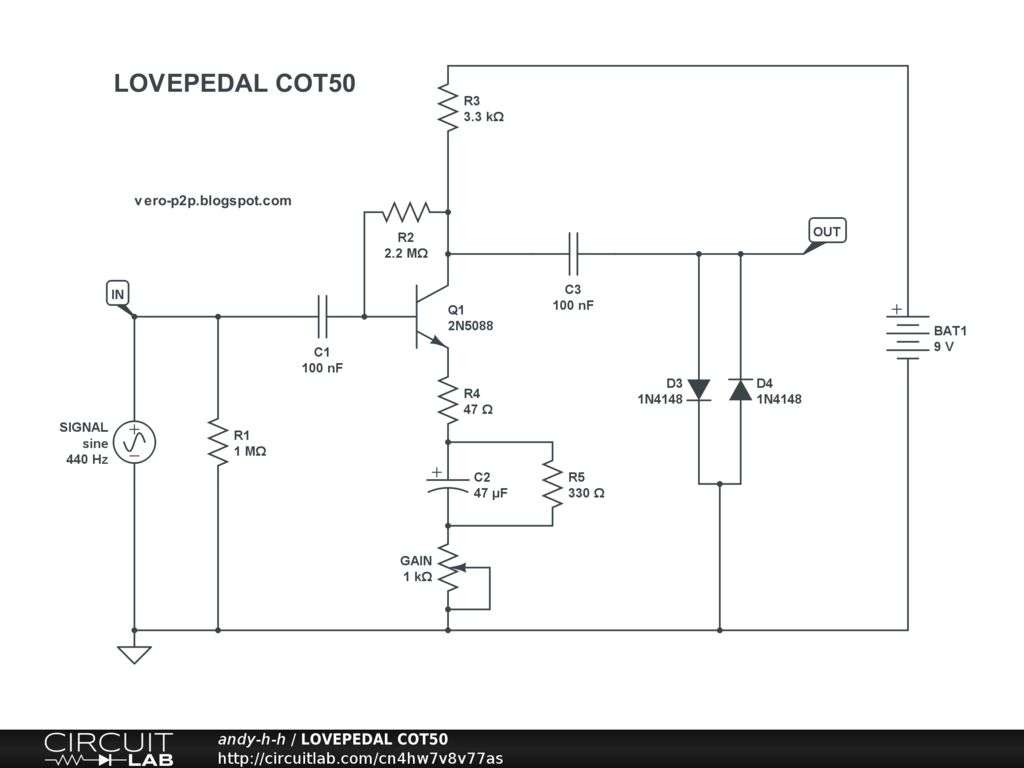

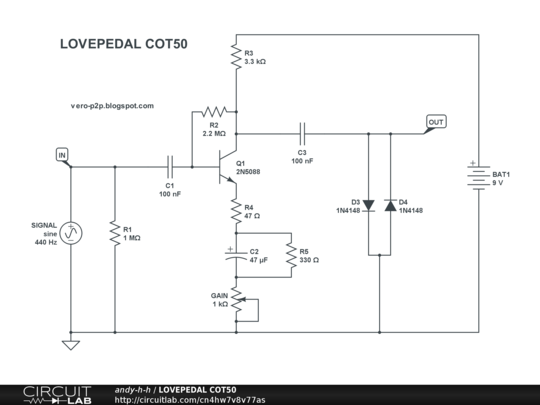

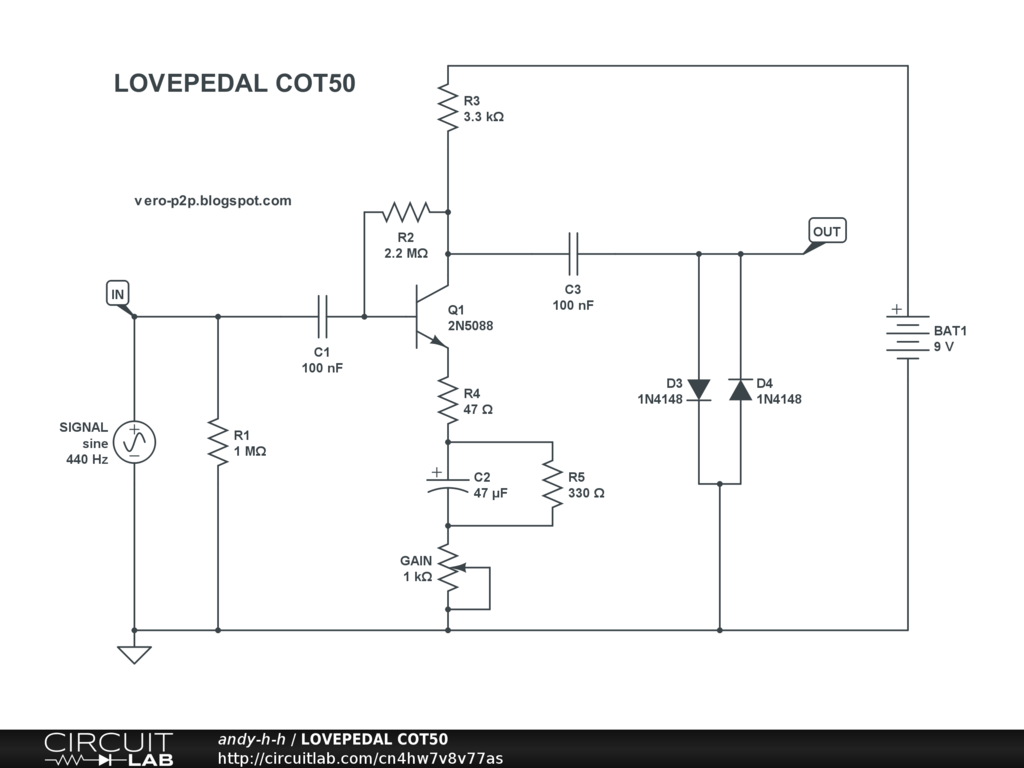

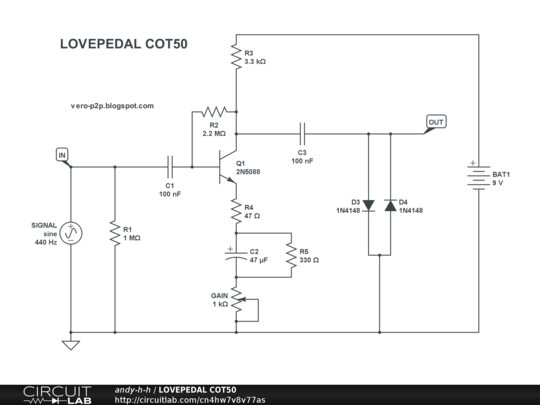

Lovepedal COT50, which is basically an Electra distortion. Signal is 440hz (A440 / A4 concert pitch), and running at 200mv, which is close to a guitar level signal.
