Constant current regulator

Created by	miceuz
Created	June 04, 2012
Last modified	June 14, 2012
Tags	constant-current-source opamp

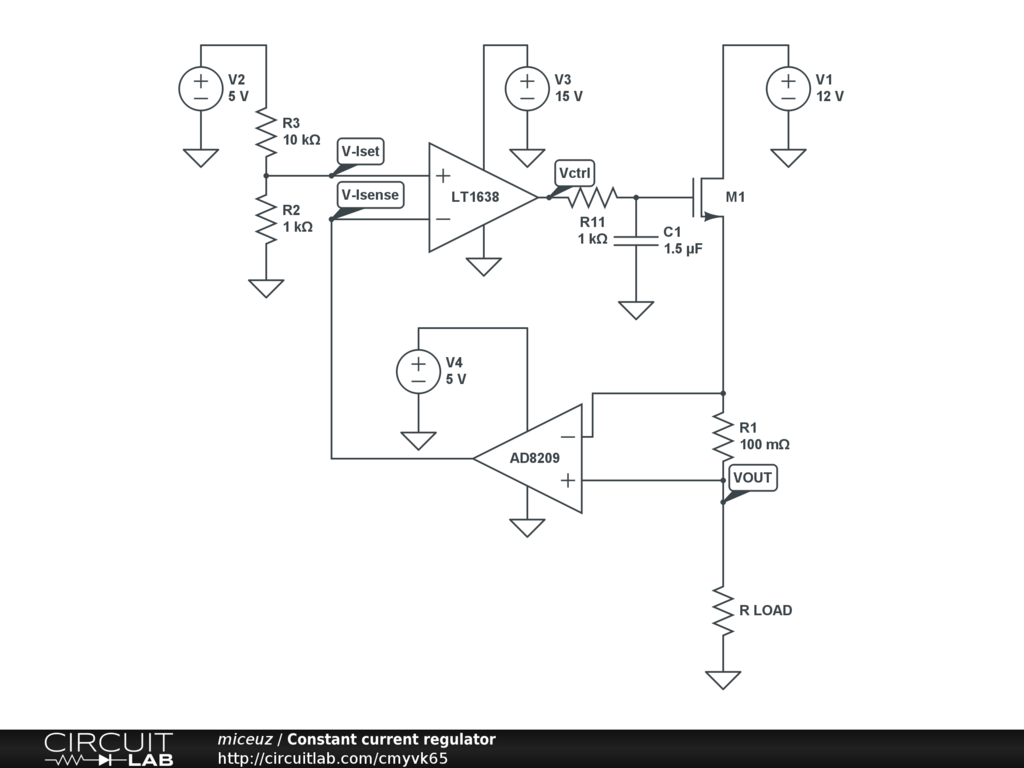

This is a constant current mode of lead acid battery charger i'm building
