behavioural resistor 03

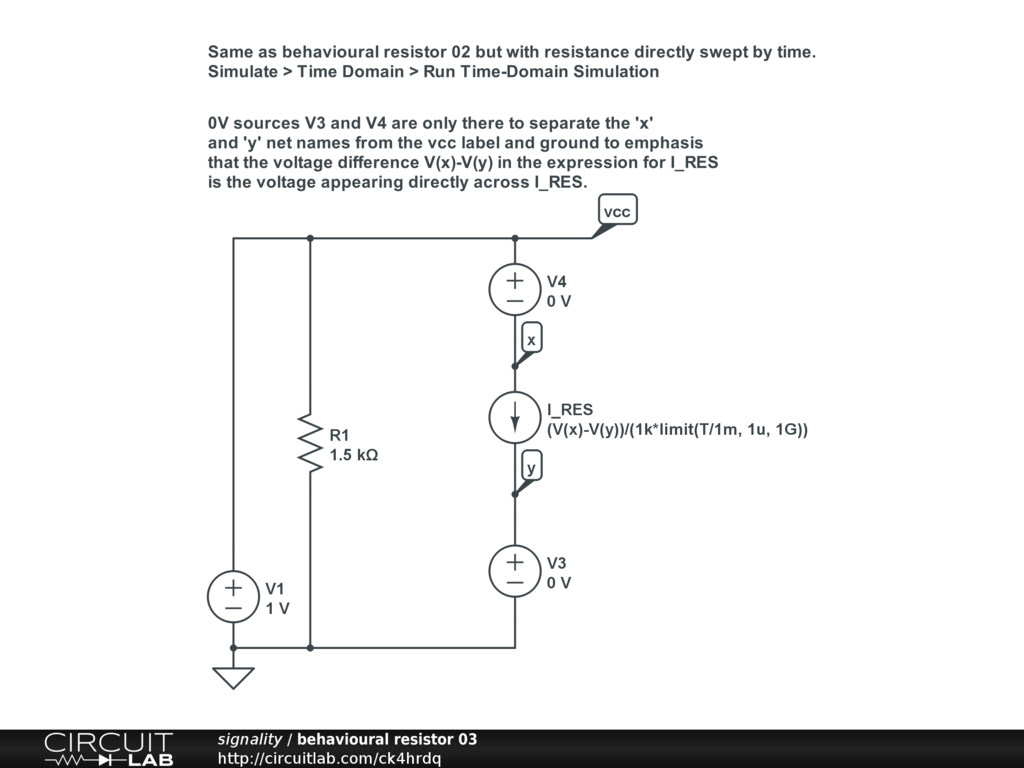

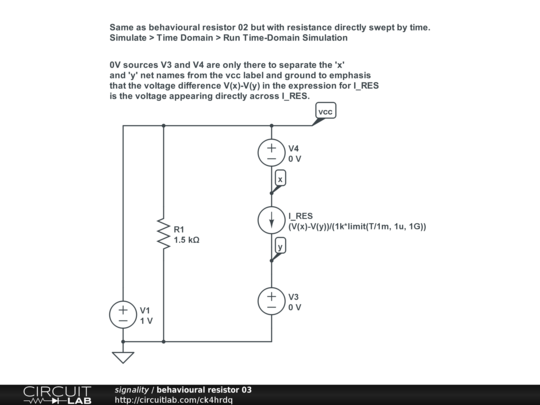

Same as behavioural resistor 02 but with resistance swept by time.

Simulate > Time Domain > Run Time-Domain Simulation
