Created by
Created January 13, 2013
Last modified January 13, 2013
Tags clock   voltage-controlled-switch


Not provided.


Not provided.


I've been trying to drive a switch like this too but I can't get the simulation to go for very long.

I tried your circuit with a 20s stop time and a 0.0001s time step but solver returned the error "Solver Aborted - Error in Transient Solver non-finite scale"

I'm pretty sure it's something to do with the switch (and not the clock). Any ideas? Thanks.

by dbro
April 13, 2015

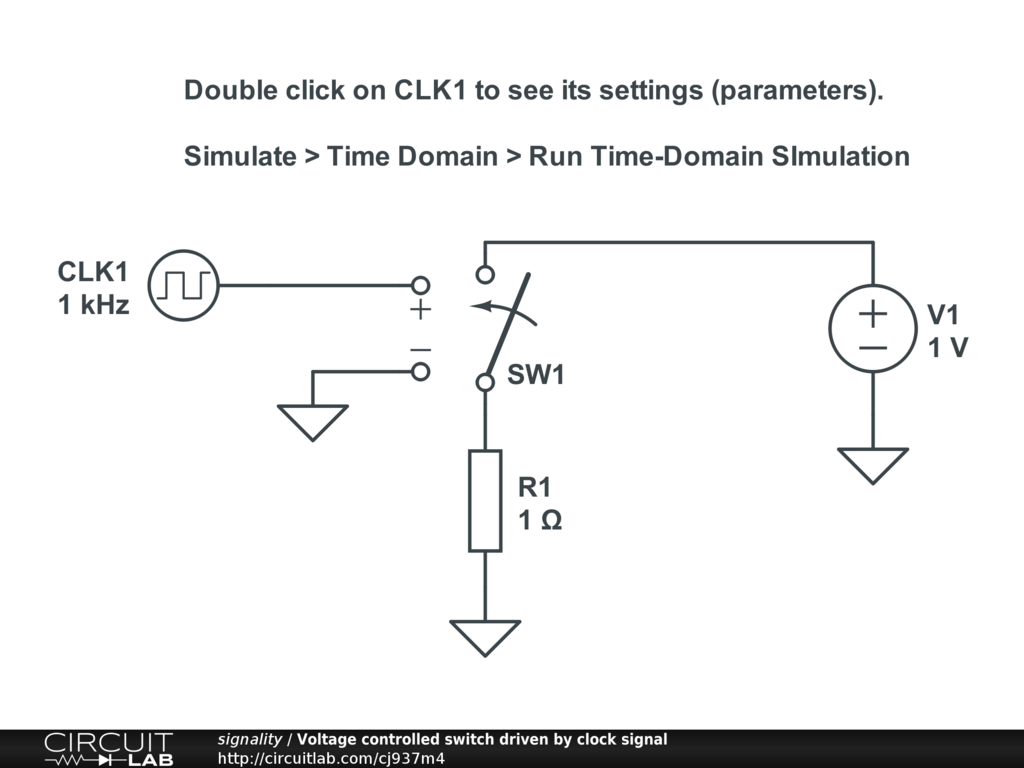

With a 20s stop time and a 0.0001s time step, my example with the 1kHz clock source simulates OK.

Please see my response to your posting:


by signality
April 15, 2015


There's nothing wrong with your circuit (or mine). From my post and your response it looks like there is a bug. I'll follow this up as you suggested.

Thanks, dbro

by dbro
April 16, 2015
